36.1 Understanding Trap Configuration
This section contains basic information to help you understand the ZENworks 7 Server Management Trap Configuration feature.
36.1.1 The Configuration Agents
Trap Configuration allows you to configure Traps of NetWare Server Alarm MIB and Novell Directory Services MIB.
NetWare Server Alarm MIB Trap Configuration is managed by the nwtrpagt.nlm agent, which implements the NWTRAPCONFIGURATION MIB module.
The Novell Directory Services MIB Trap Configuration is managed by the dstrpagt.nlm agent, which implements the NDSTRAPCONFIGURATION MIB module.
The nwtrpagt.nlm and dstrpagt.nlm agents implement a table for all the NetWare Server Alarm MIB Traps and Novell Directory Services MIB Traps. These tables are defined by NWTRAPCONFIGURATION MIB and NDSTRAPCONFIGURATION MIB. Each row in this table has an editable fields for Trap Status and Intervals. The number of rows are same as the number of Traps defined in NetWare Server Alarm MIB and Novell Directory Services MIB.
NOTE:You cannot create a row in this table.
36.1.2 Trap Configuration Management Console
You can use the Trap configuration management console to enable/disable and configure the Interval field for NetWare Server Traps and Novell Directory Service Traps, as illustrated in Figure 36-1:

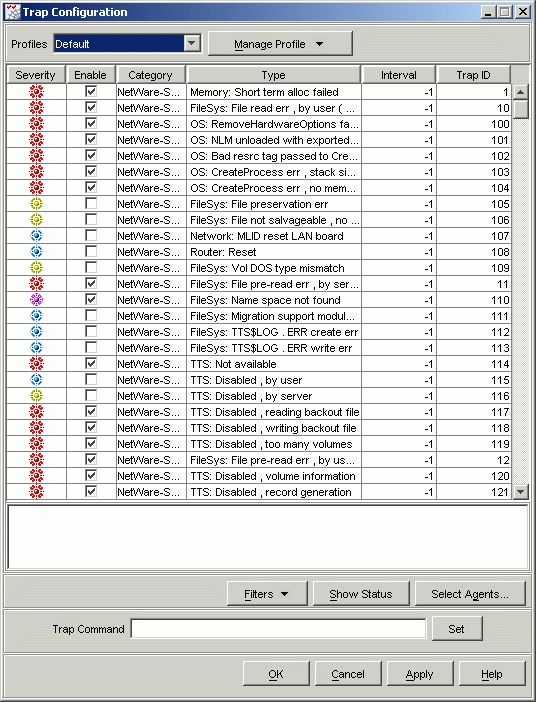

Figure 36-1 Trap Configuration dialog box
