1.2 Management and Monitoring Services
The Management and Monitoring Services component of Novell ZENworks Server Management provides industry standards-based monitoring, management, and reporting for heterogeneous network environments.
Table 1-1 Management and Monitoring Services Components

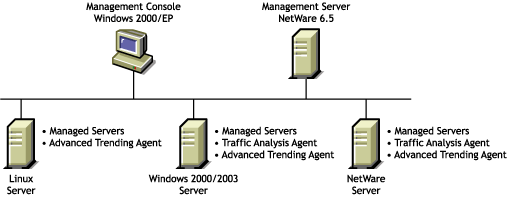

Figure 1-3 illustrates where the ZENworks Server Management components are installed:
Figure 1-3 Where the Management and Monitoring Services Components are Installed
The following sections describe components of Management and Monitoring Services:
1.2.1 Management Site Services
Management Site Services includes the following:
-
Alarm Management
-
Database Administration
-
MIB Tools Administration
-
Monitoring Services
-
Network Discovery
-
Reporting
-
Role-Based Services
-
Topology Mapping
-
View Builder
-
Unified View for Services
-
Database Object Editor
-
NetWare Trap Administration
1.2.2 Server Management Agent
Monitors all of the NetWare, Windows, or Linux servers that you want to manage.
1.2.3 Management Console
Novell ConsoleOne on Windows provides the interface where you can manage and administer your network.
1.2.4 Traffic Analysis Agent
Monitors all of the traffic on Ethernet, Token Ring, or Fiber Distributed Data Interface (FDDI) network segments. This agent is available on NetWare and Windows. To monitor the network traffic of a segment, you need only one Traffic Analysis Agent per segment.
1.2.5 Advanced Trending Agent
Gathers and stores the trend data (historic data) for any parameter instrumented by an SNMP agent, if it is defined by a MIB variable. This agent is available on NetWare, Windows, and Linux.
