7.1 Identifying the Installation You Should Use

This section provides detailed information about three possible deployment scenarios for SSL VPN. After you determine the deployment scenario, refer to the relevant installation instructions.

This section includes the following topics:

7.1.1 Deployment Scenario 1: Linux Access Gateway and SSL VPN on the Same Server

Figure 7-1 Deployment Scenario 1

This deployment scenario consists of a demilitarized zone, where the Linux Access Gateway and SSL VPN are on the same server and the Identity Server is deployed separately. For installation instructions for this scenario, see Section 7.3.2, Deployment Scenario 1: Installing SSL VPN on the Linux Access Gateway.

7.1.2 Deployment Scenario 2: Standalone SSL VPN Server

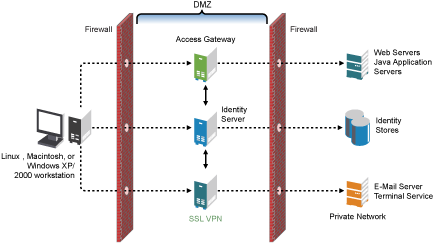

Figure 7-2 Deployment Scenario 2

This deployment scenario consists of a demilitarized zone, where the Access Gateway, Identity Server, and SSL VPN are deployed separately. For installation instructions for this scenario, see Section 7.3.3, Deployment Scenario 2: Installing SSL VPN on a Separate Machine.

7.1.3 Deployment Scenario 3: Novell Identity Server and SSL VPN on the Same Server

This deployment scenario consists of a demilitarized zone, where the Identity Server and SSL VPN are on one machine and the Access Gateway is deployed separately. For installation instructions for this scenario, see Section 7.3.4, Deployment Scenario 3: Installing Identity Server and SSL VPN on the same Machine.
