Novell Doc: Novell Access Manager 3.1 SP1 Access Gateway Guide

1.4 Configuring Protected Resources

A protected resource configuration specifies the directory (or directories) on the Web server that you want to protect. The protected resource configuration specifies the authorization procedures and the policies that should be used to enforce protection. The authentication procedures and the policies (Authorization, Identity Injection, and Form Fill) enable the single sign-on environment for the user. The type of protections a resource requires depends upon the resource, the Web server, and the conditions you define for the resource.

You can select from the following types of protection:

Authentication Procedures: Specifies the type of credentials the user must use to log in (such as name and password or secure name and password). You can select None for the contract, which allows the resource to be a public resource, with no login required.

In addition to selecting the contract, you can also configure how the authentication procedure handles subsequent authentication requests from an application.

Authorization Policy: Specifies the conditions a user must meet to be allowed access to a protected resource. You define the conditions, and the Access Gateway enforces the Authorization policies. For example, you can assign roles to your users, and use these roles to grant and deny access to resources.

Identity Injection Policy: Specifies the information that must be injected into the HTTP header. If the Web application has been configured to look for certain fields in the header and the information cannot be found, the Web application determines whether the user is denied access or redirected. The Web application defines the requirements for Identity Injection. The Identity Injection policies allow you to inject the required information into the header.

Form Fill Policy: Allows you to manage forms that Web servers return in response to client requests. Form fill allows you to prepopulate fields in a form on first login and then securely save the information in the completed form to a secret store for subsequent logins. The user is prompted to reenter the information only when something changes, such as a password.

These policies allow you to design a custom access policy for each protected resource:

Resources that share the same protection requirements can be configured as a group. You set up the policies, and then add the URLs of each resource that requires these policies.
A resource that has specialized protection requirements can be set up as a single protected resource. For example, a page that uses Form Fill is usually set up as a single protected resource.

This section describes the following tasks:

1.4.1 Setting Up a Protected Resource

To configure a protected resource:

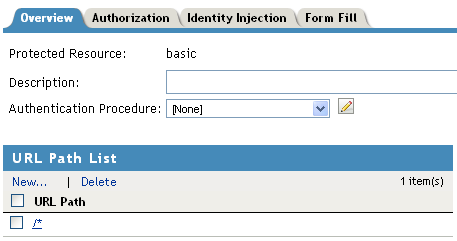

Click Access Gateways > Edit > [Name of Reverse Proxy] > [Name of Proxy Service] > Protected Resources.
Either click the name of an existing resource or click New, then specify a display name for the resource.
(Optional) Specify a description for the protected resource. You can use it to briefly describe the purpose for protecting this resource.
Select the type of contract to use for the authentication procedure. The contract determines the information a user must supply for authentication. By default, the Administration Console allows you to select from the following contracts and options when specifying whether a resource requires an authentication contract:
- None: If you want to allow public access to the resource and not require an authentication contract, select None.
- Any Contract: If the user has authenticated, allows any contract defined for the Identity Server to be valid, or if the user has not authenticated, prompts the user to authenticate, using the default contract assigned to the Identity Server configuration.
- Name/Password - Basic: Specifies basic authentication over HTTP, using a standard login pop-up provided by the Web browser.
- Name/Password - Form: Specifies a form-based authentication over HTTP or HTTPS, using the Access Manager login form.
- Secure Name/Password - Basic: Specifies basic authentication over HTTPS, using a standard login pop-up provided by the Web browser.
- Secure Name/Password - Form: Specifies a form-based authentication over HTTPS, using the Access Manager login form.
You can configure other types of contracts. For more information, see Configuring Authentication Contracts in the Novell Access Manager 3.1 SP1 Identity Server Guide.

If these default contracts are not available, you have not configured a relationship between the Access Gateway and the Identity Server. See Section 1.1, Creating a Reverse Proxy and Proxy Service.
(Conditional) To modify how the authentication procedures are handled for a specific resource and contract, click the Edit Authentication Procedures icon.

For configuration information, see Section 1.4.4, Modifying Authentication Procedures.
Configure the URL Path.

The default path is /*, which indicates everything on the Web server. Modify this if you need to restrict access to a specific directory on your Web server. If you have multiple directories on your Web server that require the same authentication contract and access control, add each directory as a URL path.
- New: To add a path, click New, specify the path, then click OK. For example, to allow access to all the pages in the public directory on the Web server, specify the following path:
```
/public/*
```
  To allow access to all the files in a directory, but not to the subdirectories and their files, specify the following:
```
/?
```
```
/public/?
```
  The /? allows access to the root directory, but not the subdirectories. The /public/? allows access to the files in the public directory, but not the subdirectories.

  To allow access to files of a specific type, specify the following:
```
/public/*.pdf
```
  This allows access to all the files in the public directory that have a PDF extension. Access to other file types and subdirectories is denied.

  To use this protected resource to protect a single page, specify the path and the filename. For example, to protect the login.html page in the /login directory, specify the following:
```
/login/login.html
```
  This is the type of URL path you want to specify when you create a Form Fill policy for a protected resource. The URL Path List normally contains only this one entry. If you have multiple pages that the Form Fill policy applies to, list each one separately in the list. For optimum speed, you want the Access Gateway to be able to quickly identify the page and not search other pages to see if the policy applies to them.

  For more information on how a user’s request is matched to a protected resource, see Section 1.4.2, Understanding URL Path Matching.

  For information on using a query string, see Section 1.4.3, Using a Query String in the URL Path.
- Modify: To modify a path, click the path link, then modify the URL Path.
- Delete: To delete a path, select the path, then click Delete.
Click OK.
In the Protected Resource List, ensure that the protected resource you created is enabled.
(Optional) To add policies for protecting this resource, continue with one of the following:
To apply your changes, click the Access Gateways link, then click Update > OK.

1.4.2 Understanding URL Path Matching

The URL path determines which protected resource is used for a user request. Suppose you create one protected resource with the following URL paths:

/*
/test/*
/test/

You create a second protected resource with the following path:

/test/*.php

Users then send the following paths in their access requests:

/test/
/test/1/2/3/file.php
/file.php
/test/file.php
/test/file.php?param1=1234

The first three requests (/test/, /test/1/2/3/file.php, and /file.ph) match the first protected resource, and the last two requests (/test/file.php and /test/file.php?param1=1234) match the second protected resource.

You then add the following URL path to the first protected resource:

/test/?

This URL path in the first protected resource causes all the requests to match the first protected resource, and the second protected resource is ignored. The ? wildcard, which matches all content in the current directory, takes precedence over the more specific wildcard (*.php).

URL paths are case insensitive. If your Web server has two paths (/public/current and /public/Current), a URL path of /public/current matches both.

1.4.3 Using a Query String in the URL Path

You can specify a query string in the URL path of a protected resource. For example:

URL path: /test/index.html?test=test

When the requested URL has a query string, the Access Gateway searches for a protected resource with a matching URL path and query string. If it can’t find a match, the request returns a resource not found error.

The Access Gateway Appliance allows you to configure the URL matching process so that it ignores the query string in the URL path.

On the Access Gateway Appliance, you can remove the query string from the URL path or you can create the following touch file:

/var/novell/.prWithOutQuestionMark

You need to then restart the Access Gateway Appliance to activate the touch file. When this touch file is used, the Access Gateway Appliance ignores the query string and uses just the path to find a match.

1.4.4 Modifying Authentication Procedures

When a user requests access to a protected resource that is protected by a contract, the default authentication procedure is to redirect the request to the Identity Server for the following conditions:

When a user attempts to connect to a protected resource for the first time.
When the user’s session reaches a soft timeout.
When the user’s session reaches a hard timeout.

The session hard timeout (Devices > Identity Servers > Edit > Session timeout) is a global setting that applies to all users. The default value is 60 minutes. The Identity Server passes this value to the Embedded Service Providers (Access Gateway, SSL VPN, or J2EE agent) and service providers.

When the Access Gateway receives the session hard timeout, it uses the value to calculate a separate soft timeout that is 66% of the hard timeout. The Access Gateway uses the soft timeout as a trigger to inform the Identity Server that the session is still active.

When the Access Gateway gets a request from a browser after the soft timeout expires, but before the hard session timeout, the Access Gateway attempts to renew the session with the Identity Server. This is done by redirecting the browser to the Identity Server. After the session renewal request, the Identity Server redirects back to the Access Gateway and the session has new soft and hard timeout values.
When the Access Gateway receives a request after the hard timeout has expired, the Access Gateway allows the user to create a new session by redirecting the browser to the Identity Server, where the user is prompted to re-authenticate. After this re-authentication, the browser is redirected back to the Access Gateway and the session has new timeout values.

Some applications, such as AJAX and WebDAV applications, do not allow redirection for authentication. You can use non-redirected login to change the default authentication behavior of Access Manager so that redirection does not occur. When non-redirected login is enabled, the Access Gateway prompts the user to supply basic authentication credentials. The SOAP back channel between the Access Gateway and the Identity Server is then used to complete the authentication on the user's behalf. The SOAP back channel, rather than a redirect, is also used for the session renewals.

Non-redirected login has the following restrictions:

Password Expiration Services: When you modify the authentication procedures to use non-redirected login, you cannot also use a password expiration service. Even when the Password expiration servlet and Allow user interaction options are configured, users are not redirected when their passwords are expiring and they are not prompted to change their passwords.
Locked Shared Secrets: When non-redirected login is enabled, users are not prompted for their passphrase for locked shared secrets.
Session Limits: Non-redirected login can cause the user to create more than one session with the Identity Server because the SOAP back channel uses a different process than authentication requests that are directed to the Identity Server. Therefore, do not limit your users to one session. Session limits are set by clicking Devices > Identity Servers > Edit.

To modify the authentication procedures:

Click Access Gateways > Edit > [Name of Reverse Proxy] > [Name of Proxy Service] > Protected Resources > [Name of Protected Resource].
On the Authentication Procedure line, click the Edit Authentication Procedure icon.
Click New, specify a name, then click OK.
To specify the method for obtaining the credentials, fill in the following fields:

Contract: Select the contract that you have configured for this protected resource. This needs to be a contract that supports name and password credentials.

Non-Redirected Login: Select this option to use the SOAP back channel to verify the user’s credentials rather than a redirected request to the Identity Server.

Realm: Specify a name that your users can use to identify the site that they are authenticating to. This could be your company name or the name of the application. This is what displays as a heading when the application requests a basic authentication.

Redirect to Identity Server When No Authentication Header Is Provided: The response should provide an authentication header. If the first request does not contain the authentication header, you can select this option to allow the first request to be redirected to the Identity Server.
Click OK.
(Conditional) If you have more than one realm to query for credentials, repeat Step 4 and Step 5.
Click OK.
Click Devices > Access Gateways, then update the Access Gateway.
(Optional) For some configuration scenarios that use this feature, see

1.4.5 Assigning an Authorization Policy to a Protected Resource

An Authorization policy specifies conditions that a user must meet in order to access a resource. The Access Gateway enforces these conditions. The policy can specify the criteria a user must meet either to allow access or to deny access.

Click Access Gateways > Edit > [Name of Reverse Proxy] > [Name of Proxy Service] > Protected Resources > [Name of Protected Resource] > Authorization.

The Authorization Policy List contains all the Access Gateway Authorization policies that have been created on this Administration Console for the selected policy container.
Select one of the following:
- To enable an existing policy, select the policy, then click Enable. Continue with Step 4.
- To disable an existing policy, select the policy, then click Disable. Continue with Step 4.
- To edit an existing policy, click the name of the policy. Remember that policies can be assigned to multiple protected resources. If you modify the policy, you are also affecting how this policy protects those resources. For configuration information, see Creating Access Gateway Authorization Policies in the Novell Access Manager 3.1 SP1 Policy Management Guide.

  When you have completed your policy modifications, continue with Step 4.
- To create a new policy, click Manage Policies. On the Policies page, click New, specify a display name, select Access Gateway: Authorization as the type, then click OK. For configuration information, see Creating Access Gateway Authorization Policies in the Novell Access Manager 3.1 SP1 Policy Management Guide.

  When you have created your policy, continue with Step 3.
To enable the policy you just created, select the policy, then click Enable.

Only the policies that are enabled are applied to this resource. All available Authorization policies are listed. If you use the same policy for multiple protected resources, use the policy description field to indicate this.
To save your changes to browser cache, click OK.
To apply the changes, click the Access Gateways link, then click Update > OK.

1.4.6 Assigning an Identity Injection Policy to a Protected Resource

The Web application defines the requirements for Identity Injection. If a Web application has been configured to look for certain fields in the header and the information cannot be found, the Web application determines whether the user is denied access, granted access, or redirected. You configure an Identity Injection policy to inject into the HTTP header the information that the Web application requires.

Click Access Gateways > Edit > [Reverse Proxy Name] > [Name of Proxy Service] > Protected Resources > [Name of Protected Resource] > Identity Injection.

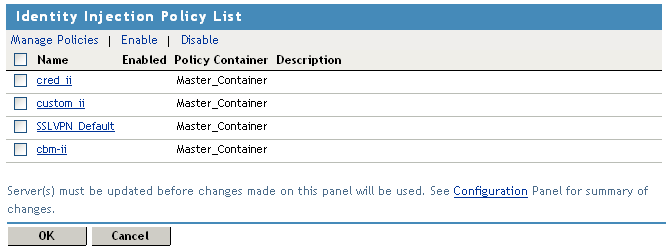

The Identity Injection Policy List contains all the Identity Injection policies that have been created on this Administration Console for the selected policy container.
Select one of the following:
- To enable an existing policy, select the policy, then click Enable. Only the policies that are enabled are applied to this resource. Continue with Step 4.
- To disable an existing policy, select the policy, then click Disable. Continue with Step 4.
- To edit an existing policy, click the name of the policy. Remember that policies can be assigned to multiple protected resources. If you modify the policy, you are also affecting how this policy protects those resources. For configuration information, see Creating Identity Injection Policies in the Novell Access Manager 3.1 SP1 Policy Management Guide.

  When you have finished your policy modifications, continue with Step 4.
- To create a new policy, click Manage Policies. On the Policies page, click New, specify a display name, select Access Gateway: Identity Injection as the type, then click OK. For configuration information, see Creating Identity Injection Policies in the Novell Access Manager 3.1 SP1 Policy Management Guide.

  When you have created your policy, continue with Step 3.
To enable the policy you just created, select the policy, then click Enable.

Only the policies that are enabled are applied to this resource. If you use the same policy for multiple protected resources, use the policy description field to indicate this.
To save your changes to browser cache, click OK.
To apply your changes, click the Access Gateways link, then click Update > OK.

IMPORTANT:If you enable an Identity Injection policy for a protected resource that has been assigned to use a contract that does not prompt the user for a password and the Identity Injection policy injects the user’s password, single sign-on cannot be enabled because the password is not available.

1.4.7 Assigning a Form Fill Policy to a Protected Resource

Some client requests cause the Web server to return a form. Sometimes this form contains a request to log in. If you create a Form Fill policy, you can have the Access Gateway fill in the form. When a user first logs in, the Access Gateway prepopulates some fields and prompt the users for the others. The Access Gateway securely saves the information, so that on subsequent logins, the Access Gateway can fill in the form. The user is only prompted to fill in the form when something changes, such as a password expiring.

Form Fill uses two components: the HTML form and the Form Fill policy. The HTML form is created with HTML tags and consists of form elements such as fields, menus, check boxes, and buttons. The Form Fill policy is created by specifying the following:

Which information is entered automatically and not displayed to the user.
Which information is displayed so that the user, at least the first time, can enter the information.
What is done with the information (for example, is it saved so that the user doesn't need to enter it when accessing the form again).

You must create the policy before you can assign it to a resource (see Creating Form Fill Policies in the Novell Access Manager 3.1 SP1 Policy Management Guide). To assign a Form Fill policy to a protected resource:

In the Administration Console, click Devices > Access Gateways > Edit > [Reverse Proxy Name] > [Name of Proxy Service] > Protected Resources > [Name of Protected Resource].
Examine the entries in the URL Path List.

Ideally, the URL to which you are assigning a Form Fill policy should be a single HTML page or a few HTML pages. If at all possible, it should not be a URL that ends in a wildcard (for example, an asterisk) and therefore matches many pages.

IMPORTANT:When the URL ends in a wildcard, the Access Gateway must search each page that matches the URL and check to see if it contains the form. This adds extra processing overhead for all the pages that match the URL, but do not contain the form. For more information on the performance problems this can cause, see Creating a Form Matching Rule in the Novell Access Manager 3.1 SP1 Policy Management Guide.
(Conditional) If the URL is not specific, click the name of the path and modify it.
Click Form Fill.

The Form Fill Policy List contains all the Form Fill policies that have been created on this Administration Console for the selected policy container.
Select one of the following:
- To enable an existing policy, select the policy, then click Enable. Only the policies that are enabled are applied to this resource. Continue with Step 7.
- To disable an existing policy, select the policy, then click Disable. Continue with Step 7.
- To edit an existing policy, click the name of the policy. Remember that policies can be assigned to multiple protected resources. If you modify the policy, you are also affecting how this policy protects those resources. For configuration information, see Creating Form Fill Policies in the Novell Access Manager 3.1 SP1 Policy Management Guide.

  When you have finished the policy modifications, continue with Step 7.
- To create a new policy, click Manage Policies. On the Policies page, click New, specify a display name, select Access Gateway: Form Fill as the type, then click OK. For configuration information, see Creating Form Fill Policies in the Novell Access Manager 3.1 SP1 Policy Management Guide.

  When you have created your new policy, continue with Step 6.
To enable the policy you just created, select the policy, then click Enable.

Only the policies that are enabled are applied to this resource. If you use the same policy for multiple protected resources, use the policy description field to indicate this.
To save your changes to browser cache, click OK.
To apply your changes, click the Access Gateways link, then click Update > OK.

IMPORTANT:If you enable a Form Fill policy for a protected resource that has been assigned to use a contract that does not prompt the user for a password and the Form Fill policy contains a field for the user’s password, single sign-on cannot be enabled because the password is not available. To enable single sign-on, you need to use an Authentication class that retrieves the user’s password and injects it into the user’s credentials when the user authenticates using a non-password method such as X.509, RADIUS, smart card, or Kerberos. For information about such a class and how to download and configure it, see Access Management Authentication Class Extension to Retrieve Password for Single Sign-on.

1.4.8 Assigning a Policy to Multiple Protected Resources

If you have created multiple protected resources that need to be protected by the same policy or policies, you can use the policy view to assign a policy to multiple protected resources. The one limitation is that the protected resources must belong to the same proxy service.

In the Administration Console, click Devices > Access Gateways > Edit > [Reverse Proxy Name] > [Name of Proxy Service] > Protected Resources.

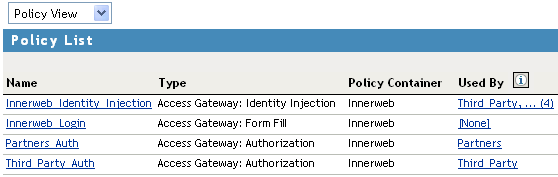

Select the Policy View.
Select the Used By link of the policy you want to assign to multiple resources.

The Policy and Policy Container fields identify the policy. The Protected Resource Policy Usage List displays the protected resources defined for this proxy service and indicates which resources the policy has been enabled on.
To enable the policy for multiple resources, either select them one by one or click Name to select all of them, then click Enable. To disable a policy for a resource, select the resource, then click Disable.
To save your changes to browser cache, click OK.
To apply your changes, click the Access Gateways link, then click Update > OK.
