3.16 Using HP Reporter Data with PlateSpin Recon

PlateSpin Recon features a specialized HP Reporter connector. It enables PlateSpin Recon to connect to an HP Reporter 3.8 database to import performance and resource utilization data for charts, reports and consolidation planning.

You can use any HP Reporter-collected data to generate PlateSpin Recon charts and reports. However, for consolidation planning you must configure Reporter to collect specific utilization data that correlates to data collected by specific PlateSpin Recon counters. For details, see Section 3.15.1, Required Performance Counters.

Because HP Reporter doesn’t collect data in exactly the same format as PlateSpin Recon, you need to specify appropriate formulas to transform the data from Reporter-collected metrics to PlateSpin Recon counters.

The HP Reporter data summarization interval is specified during the creation of the HP Reporter Metric List.

3.16.1 Using Formulas to Convert Metrics to Counters

You can use a formula to provide the following information to the PlateSpin Recon HP Reporter Connector:

  • Which Reporter metric list contains metrics required by PlateSpin Recon

  • How to convert data from measurement units used by Reporter units to those required by PlateSpin Recon

A valid HP Reporter Connector formula consists of the name of the required HP Reporter metric list, followed by a dot character, followed by an arithmetic expression that converts the metric into a PlateSpin Recon counter. Arithmetic expressions can contain any of the collected Reporter metrics, numeric constants, and arithmetic operations.

NOTE:Only metrics collected by the same metric list can be used in one formula, although different formulas can use different metric lists.

For example, PlateSpin Recon requires memory utilization data expressed in the number of free bytes available to the operating system, while Reporter collects the same data by using two separate metrics:

  • Percentage of memory utilized (GBL_MEM_UTIL)

  • Total size of the memory in gigabytes (GBL_MEM_PHYS)

In this case, the appropriate formula for converting collected metric data into the PlateSpin Recon counter format would be:


3.16.2 Example Formulas

The following are examples of HP Reporter metrics that you can collect using CODA agents, along with corresponding conversion formulas. Note that To do consolidation planning, PlateSpin Recon requires data for all four counters. Because HP Reporter can collect metric data with several different agents, and the same PlateSpin Recon counters can be calculated using different HP Reporter metrics, this list is not exhaustive and serves only as an example.

Table 3-9 Example HP Reporter Metrics

PlateSpin Recon Counter

HP Reporter Metrics

Conversion Formula

Processor Utilization





Memory Utilization






Disk Utilization





Network Utilization




Data for certain HP Reporter metrics and PlateSpin Recon counters is collected separately for each device instance. For example, the BYCPU_CPU_TOTAL_UTIL metric gives a separate utilization figure for each CPU in the system. To distinguish among different device instances, include a metric with a device identification string in the list when you set up the HP Reporter metric lists.

The PlateSpin Recon HP Reporter connector identifies the following metrics as containing device instance names:

Table 3-10 PlateSpin Recon HP Reporter Metrics

Functional Area






Network Interface Cards


File Systems


To work with HP Reporter data:

  1. Configure your HP Reporter to collect data in the required performance and utilization measurement categories. See Section 3.15.1, Required Performance Counters.

  2. (Conditional) If you are using Oracle with HP Reporter, install Oracle client software on the PlateSpin Recon Server host. For details, see your Oracle documentation.

  3. Create a new Remote site for connecting to the HP Reporter database:

    1. Right-click in the Data Center Explorer and select Sites > Add Site.

      The Add Site dialog box is displayed.

    2. Specify a Name and, optionally, a Description.

    3. Click the Type drop-down and select Remote from the list.

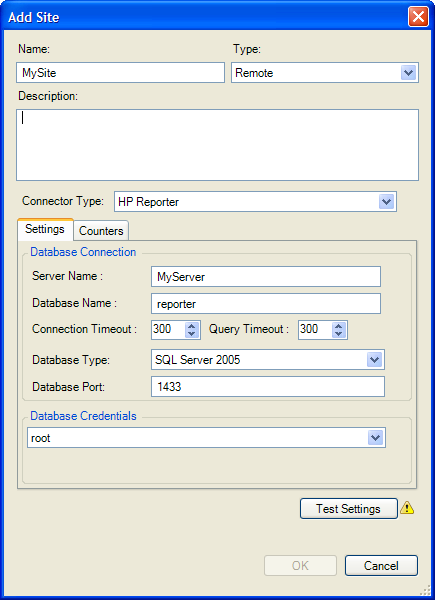

      Figure 3-20 Add Remote Site Dialog Box

    4. From the Connector Type drop-down list, select HP Reporter.

      HP Reporter-related Settings and Counters fields are displayed.

    5. On the Settings tab, provide the required information for connecting to the HP Reporter database: database hostname, database or database instance name, database type, port number (if a non-default port number is used), and valid credentials for accessing the database.

      When you synchronize a large dataset from HP Reporter, you might need to set the Connection timeout and/or the Query timeout values to 0, which means infinite/unlimited timeout.

    6. On the Counters tab, for the four required performance and utilization data categories, provide counter formulas for the system to use when converting HP Reporter metrics to PlateSpin Recon counters. See Section 3.16.1, Using Formulas to Convert Metrics to Counters.

    7. Click OK.

      The new site is added under Sites in the Data Center Explorer.

  4. Inventory the machines:

    1. In the Data Center Explorer, right-click the remote site you just created and select Sites > Inventory Machines.

      The Inventory Machines in Site <sitename> dialog box is displayed.

    2. Select the check boxes next to the machines you want to inventory.

    3. Select the required credentials or select <New Credential> to add new credentials.

    4. Click OK.

  5. Synchronize site data:

    1. In the Data Center Explorer, right-click the required site and select Sites > Synchronize Data.

    2. Select the check boxes next to the required machines. To select all machines in a site, select the check box next to the site.

    3. Select required data range, scheduling, and recurrence options.

    4. Click OK.

For in-depth information about using PlateSpin Recon in conjunction with HP Reporter, see Knowledge Base article Q21088.
