Diagramming Your Frame Relay Network

To ensure that all the desired connections to the frame relay network are properly diagrammed, complete the following steps:

1. Diagram the existing frame relay network showing all Novell Internet Access Server 4.1 routing access points.

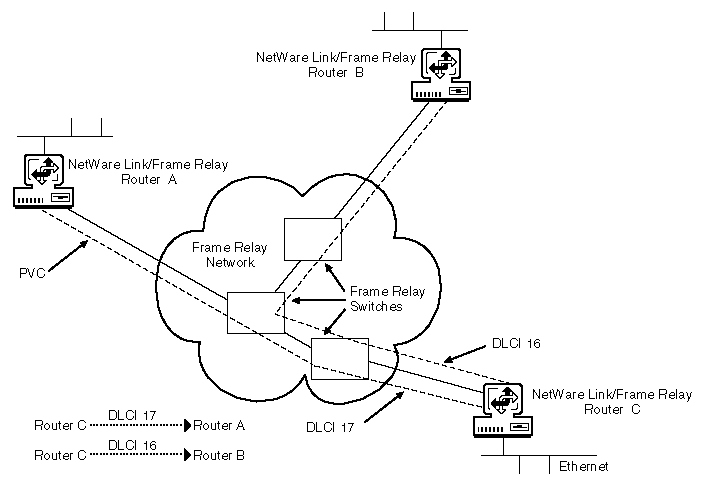

   Figure 6 shows a simple example of a planning diagram.

2. Draw each connection from the local NetWare router to its corresponding partner.

   Indicate the DLCI number assigned by the network for each connection (PVC).

   Figure 6
   Frame Relay Planning Diagram
