7.3 Archiving CellTrust Generation 2

7.3.1 Prerequisites

7.3.2 Configure the Retain REST-based Archiving Connection

Make sure you have completed the instructions in First, Configure the Retain Server or Router Connection.

7.3.3 Create a REST Collector

Create a REST collector under Server Configuration in the REST Collectors Panel. And send to your service provider.

7.3.4 Configure the CellTrust Module

To configure the CellTrust module, all that is required is to enable the Jobs in the module and Save Changes.

Path: Retain Server Manager > Configuration > Module Configuration > CellTrust SecureLine-Configure > Core Settings

The “Enable Jobs” box must be checked to have data archiving functionality.

The Send Method option enables either the SMTP Forwarding or FTP features. For either feature to appear and function, the Module Forwarding tab must be configured on the Server Configuration page.

Save changes and the module is configured. You may need to disable and re-enable "Enable Job" before it will allow you to Save Changes.

There is no need to configure the SecureLine Servers.

Configure CellTrust

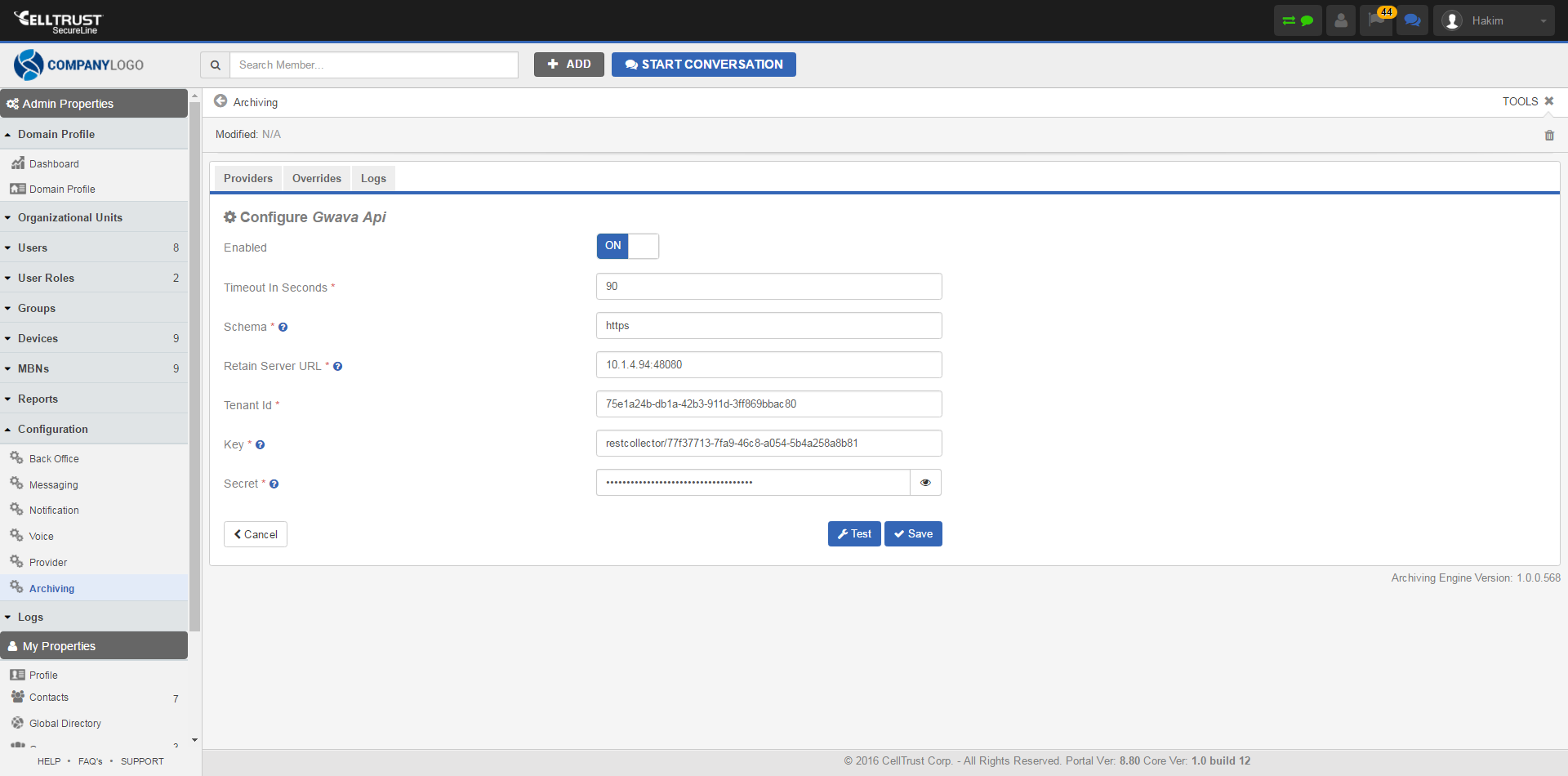

The REST connection to the collector needs to configured by the Admin on the CellTrust system side.

Provide the Retain Server URL, Tenant ID, Key and Secret.

Once the connection is made data will begin to flow into Retain from CellTrust and will appear in the user's Retain mailbox.

There are no Profiles or Jobs associated with this Module. Data flow can be monitored with the Archive Summary by Module report Archive Summary by Module.
