7.2 Approval Activity

The Approval activity is a user-facing activity that displays an approval form to the user. On the approval form, the user can approve, deny, or refuse a provisioning request. The Approval activity can have multiple outgoing flow paths, but only one of the paths is executed at runtime.

You can customize the approval form to suit your application requirements. For details on customizing forms, see Section 5.0, Creating Forms for a Provisioning Request Definition.

Before displaying the form to the user, the Approval activity performs any pre-activity data mappings specified for the activity.

After the user submits the form, the Approval activity performs any post-activity mappings specified for the activity. These mappings typically include copying data from form fields into the flowdata object.

7.2.1 Properties

The Approval activity has the following properties:

Table 7-3 Approval Activity Properties

Property Name

Description

Name

Provides a name for the activity.

Addressee

Specifies a dynamic expression that identifies the addressee for the activity. The addressee is the approver of the workflow.

The addressee is determined at runtime, based on evaluation of the expression. Designer validates that the expression is a valid ECMA expression. It cannot validate whether the expression resolves to a valid object (such as a role) or whether that object will exist at runtime.

For information on specifying addressees (such as specifying a role as the approver), see Specifying the Addressee Property.

For more information about developing valid Addressee expressions, and about how Addressee interacts with the Approver Type property, see Section 7.2.4, Addressing an Approval Activity.

HINT:To simplify the process of testing a new workflow, you can set the addressee to be the recipient. This removes the need to log out of the User Application and log in again as a manager each time you want to test your forms. This technique is particularly useful when the workflow involves multiple levels of approval. After the testing phase is complete, you can change the addressee to the correct value.

For details on building ECMA expressions, see Section 9.0, Working with ECMA Expressions. For descriptions of the system variables available in a workflow, see Section 6.5.3, Understanding Workflow Data.

Reminder Start

Specifies a dynamic expression that defines, in milliseconds, the time at which the first reminder e-mail should be sent. The start value is an offset from the time of the first assignment associated with the activity. You can pick predefined expressions that represent common intervals (for example, hour, day, week) in the ECMAScript Variables pane of the ECMA expression builder.

This is part of the reminder e-mail function. If this activity is considered important and needs to be acted on quickly, you can configure the activity to send a reminder e-mail to the activity addressee. For example, you can set the reminder settings to send a reminder e-mail 5 days before the activity times out, and on a daily basis until the activity times out. To do this, specify a Reminder Start time, a Reminder Interval, and the e-mail to be sent (see Section 7.2.3, E-Mail Notification).

For details on building ECMA expressions, see Section 9.0, Working with ECMA Expressions. For descriptions of the system variables available in a workflow, see Section 6.5.3, Understanding Workflow Data.

Reminder Interval

Specifies a dynamic expression that defines the interval between which reminder e-mails are sent. You can pick predefined expressions that represent common intervals (for example, hour, day, week) in the ECMAScript Variables pane of the ECMA expression builder.

Escalation Addressee

Not available when the approver type is Multiple or Quorum

Specifies a dynamic expression that identifies the user who should get this task if the timeout limit has been reached.

The escalation addressee is determined at runtime, based on how the expression is evaluated.

For details on building ECMA expressions, see Section 9.0, Working with ECMA Expressions. For descriptions of the system variables available in a workflow, see Section 6.5.3, Understanding Workflow Data.

Escalation Count

Not available when the approver type is Multiple or Quorum.

Specifies the number of times to retry the activity in the event of a timeout.

When an activity times out, the workflow process can try to complete the activity again, depending on the escalation count specified for the activity. With each retry, the workflow process can escalate the activity to another user. In this case, the activity is reassigned to another user (the user’s manager, for example) to give this user an opportunity to finish the work of the activity. If the last retry times out, the activity can be marked as approved, denied, refused, timedout, or in error, depending on the final timeout action specified for the activity.

The Timeout interval (see Timeout in this table) takes precedence over the Escalation Interval. For example, if you set the timeout to 10 minutes, and specify an Escalation Count of 3 and Escalation Interval of 5 minutes, the activity finishes after 10 minutes without attempting all of the retries. In this example, the second retry would be canceled, and the workflow would finish processing for the activity. At the conclusion of the activity, the workflow engine would follow the link defined by the final timeout action.

Escalation Interval

Not available when the approver type is Multiple or Quorum.

Specifies a dynamic expression that defines the period of time allotted for the addressee to complete the task. The escalation interval applies each time the activity is executed by the addressee.

The Timeout interval (see Timeout in this table) takes precedence over the Escalation Interval. For example, if you set the timeout to 10 minutes, and specify an Escalation Count of 3 and Escalation Interval of 5 minutes, the activity will finish after 10 minutes without attempting all of the retries. In this example, the second retry would be canceled, and the workflow would finish processing for the activity. At the conclusion of the activity, the workflow engine would follow the link defined by the final timeout action.

For details on building ECMA expressions, see Section 9.0, Working with ECMA Expressions. For descriptions of the system variables available in a workflow, see Section 6.5.3, Understanding Workflow Data.

Escalation Reminder Start

Not available when the approver type is Multiple or Quorum.

Specifies a dynamic expression that defines the time at which the first reminder e-mail (see Reminder Start in this table) should be sent to the Escalation Addressee. The start value is an offset from the time of the escalation assignment. You can pick predefined expressions that represent common intervals (for example, hour, day, week) in the ECMAScript Variables pane of the ECMA expression builder.

Escalation Reminder Interval

Not available when the approver type is Multiple or Quorum.

Specifies a dynamic expression that defines how often messages are sent to the Escalation Addressee after the first escalation reminder is sent. You can pick predefined expressions that represent common intervals (for example, hour, day, week) in the ECMAScript Variables pane of the ECMA expression builder.

Final Timeout Action

Determines the final state of the request in the event that the workflow times out. The choices are

  • approved

  • denied

  • refused

  • timedout

  • error

Timeout

Specifies a dynamic expression that defines the period of time allotted for the addressee to complete the task. The timeout interval applies each time the activity is executed by the addressee.

The Timeout setting takes precedence over the Escalation Count and Escalation Interval values. If the Timeout setting for the activity is reached before one or more of the escalation attempts have been tried, the activity finishes processing without executing these escalation attempts. For example, if you set the timeout to 10 minutes, and specify an Escalation Count of 3 and Escalation Interval of 5 minutes, the activity finishes after 10 minutes without attempting all of the escalation attempts. In this example, the second escalation attempt would be canceled, and the workflow would finish processing for the activity. At the conclusion of the activity, the workflow engine would follow the link defined by the final timeout action.

For details on building ECMA expressions, see Section 9.0, Working with ECMA Expressions. For descriptions of the system variables available in a workflow, see Section 6.5.3, Understanding Workflow Data.

Time Units

Determines the unit of measure used for the timeout interval. The choices are

  • Milliseconds

  • Days

  • Hours

  • Minutes

  • Seconds

Form

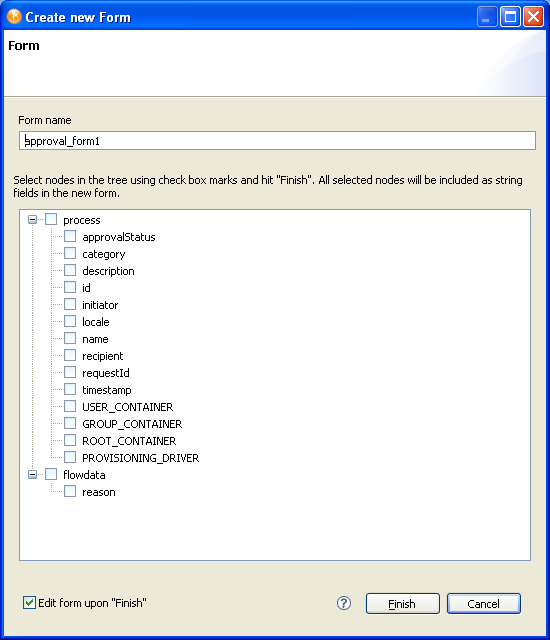

Specifies the name of the approval form to display at runtime, or lets you define a new form. Select the name of the form you want to use or create new form. When you choose to create a new form, the Create New Form Wizard launches and looks similar to this.

Select the data items to include in the form from the data items listed, then click Finish. The Approval Form Wizard generates each of the selected data items as a String type field in the new form.

An Approval activity must have a form associated with it. If no form is specified, an error message is displayed at runtime.

Exclude Requestor

Specifies whether requestors can approve their own provisioning requests.

  • True: The requestor is not allowed to approve their own provisioning requests.

  • False: The requestor is allowed to approve their own provisioning requests.

Approver Type

Specifies the number of addresses that are allowed and the approval pattern that is enforced for this activity. The choices are

  • Normal: Action by the addressee is required to complete the approval.

  • Group: Action by one addressee in the group is required to complete the approval.

  • Multiple: Action by all of the addressees is required to complete the approval.

    You cannot use post activity data item mapping with the Multiple Approver Type.

  • Quorum: Action by a percentage of addressees or an absolute number of addressees (see Quorum property in this table) is required to complete the approval.

    You cannot use post-activity data item mapping with the Quorum Approver Type.

For information about how the Approver Type property interacts with the Addressee property, see Section 7.2.4, Addressing an Approval Activity.

Notify by E-Mail

Specifies whether this activity should send e-mail notifications. Set to True to notify by e-mail; otherwise, set to False.

You specify the e-mail to send using the E-Mail Notification tab (see Section 7.2.3, E-Mail Notification).

To use this feature, the Notify participants by E-Mail parameter for the provisioning request definition must be set to True (see Table 4-3, Overview Properties).

Quorum

Not available when the approver type is Normal, Group, or Multiple.

Allows you to specify a constant value or to create an ECMA expression that specifies a percentage (for example, ’75%’) of approvals that is required before a quorum is achieved, or an absolute number (for example, ’3’) of approvals that are required before a quorum is achieved.

Digital Signature Type

See Digital Signature Type in Table 6-14.

Priority

Specifies a dynamic expression that defines the priority of the approval activity. Valid priority values are 1, 2, or 3. You can also define an expression to determine the priority from workflow data. For example, flowdata.get("Priority").

In the User Application, users can sort the list of tasks by the priority values of the tasks.

NOTE:To enable delegation to a group DN, you can have an approver type of Group or Normal, but the Addressee value must be an expression that returns the user DNs for each member of that group For example, IDVault.get(groupdn, ‘sales’, ‘members’)

7.2.2 Data Item Mapping

To bind the data items associated with the Approval activity, you define pre-activity and post-activity mappings. The pre-activity mappings initialize data in the approval form with constants, values retrieved from the flowdata object, system process variables, system activity variables, and data retrieved via expression calls to the directory abstraction layer. The post-activity mappings move form data back into the flowdata object.

Table 7-4 Approval Activity Data Item Mappings

Setting

Description

Pre Activity

Allows you to specify one or more pre-activity mappings. When this option is selected, you can double-click a cell in the Source Expression column to specify where the approval form gets data for a particular target form field.

NOTE:When the Pre-Activity choice is selected, the cells in the Target Form Field column are not editable.

Post Activity

Allows you to specify one or more Post Activity mappings. When this option is selected, you can double-click a cell in the Target Expression column to specify where data from a form field should be copied after the form has been processed.

You cannot use Post Activity mapping with the Multiple and Quorum approver types (see Section 7.2.1, Properties).

The DNDisplay control is not available for post activity mappings.

The form for an Approval activity includes a special internal control called apwaComment. This control causes user comments to be written to the workflow database. It should not have a post-activity mapping. For more information on this control, see Section 5.5.10, DNMaker.

NOTE:When the Post-Activity option is selected, the cells in the Source Form Field column are not editable.

Source Expression

Specifies a source expression for a pre-activity mapping. When you click a cell in the Source Expression column, the ECMA expression builder displays to help you define your expression.

Target Expression

Specifies a target expression for a post-activity mapping. When you click a cell in the Target Expression column, the ECMA expression builder displays to help you define your expression.

For details on building ECMA expressions, see Section 9.0, Working with ECMA Expressions.

7.2.3 E-Mail Notification

To enable e-mail notification for the Approval activity, you need to specify the e-mail template to use, as well as source expressions for target tokens in the e-mail body.

Table 7-5 E-mail Notification Settings for the Approval Activity

Setting

Description

Notify

Specifies that this e-mail notification is a notification e-mail.

Reminder

Specifies that this e-mail notification is a reminder e-mail.

Retry Reminder

Specifies that this e-mail notification is a retry reminder e-mail.

Show System Tokens

Displays system tokens (for example, TO, CC, BCC, REPLYTO) in the Target column.

E-Mail Template

Specifies the name of the e-mail template to use. By default, the Approval activity uses the Provisioning Notification template.

You can edit an e-mail template in Designer. For more information, see Editing an e-mail template:.

Source/Target

Specifies the source expressions for target tokens in the e-mail body.

The list of target tokens is determined by the selected e-mail template. You cannot add new tokens, but you can assign values to the tokens by building your own source expressions. At runtime, source expressions are evaluated to determine the value of each token.

The available target tokens are listed below:

  • TO

  • CC

  • BCC

  • REPLYTO

  • recipientFullName

  • initiatorFullName

  • requestTitle

  • userFirstName

If you use a provisioning request definition template to create your workflow, each token has a default source expression. The default expressions retrieve values from the workflow process (the process object) or from the data abstraction layer (IDVault object). You can modify these expressions to suit your application requirements.

NOTE:When you create a workflow for use with the Resource Request portlet, and you use the “ _default_” as the expression for the TO token, the addressee expression must be an IDVault expression.

For details on building ECMA expressions, see Section 9.0, Working with ECMA Expressions.

NOTE:E-mail notification is supported only when the Notify participants by E-Mail check box is selected on the Overview tab, and the Notify by E-Mail property for the Approval activity is set to True.

7.2.4 Addressing an Approval Activity

To address an Approval activity, you must enter a valid expression for the Addressee property. The Addressee is the approver for the activity. The number of approvals that are required to approve the activity is determined by the relationship between the Addressee property and the Approver Type property as described in Relationship Between Addressee and Approver Type. This section includes the following topics:

Specifying the Addressee Property

To build the addressee expression:

  1. Click the button in the Addressee property Value column.

    Designer launches the dialog box where you can add or remove an expression. The following dialog only displays when the Approver Type is Group, Multiple, or Quorum.

  2. Click + to add a new addressee expression by using the Expression Builder.

    You can choose one of the ECMAScript Objects to build the addressee expression, or use the Identity Vault or Search Roles buttons to select a specific object. The Search Roles button is not available when Approver Type is Normal.

    1. To specify a Role as the Addressee, click Search Roles.

    2. In the dialog box, specify the CN, Display Name, Description, Role Category, and Role Level on which you want to search.

      For CN, Display Name, and Description, you can enter a wildcard (such as S*, *S) or regular expressions (such as [A-Zoo-z]*).

      You can enter a value for all of the fields or none of the fields. If you do not supply a value in a particular field, the search returns all of the possible values for that field. If you enter values in one or more of the fields, the values are ANDed together to create the search filter. The search occurs on the roles defined locally. Roles matching the search criteria are displayed in the Matching Roles selection list.

    3. Select a role from the Roles selection list, then click OK. The role is added to the expression area.

  3. Click OK after you are satisfied with expression.

Valid Addressee Expressions

An Addressee expression must resolve to one of the following at runtime:

  • A valid individual addressee that can be a user DN, a group DN, or a role DN.

  • A valid list of addressees (for example, created using a Java vector object) that can contain multiple User DNs, multiple group DNs, or multiple role DNs, or a mixture of both.

Because the addressee is the approver, the maximum number of approvals possible equals the number of Addressees (the number of User DNs plus the number of Group DNs or Role DNs) and does not include or count the individual members of a Group or Roles.

NOTE:A Group DN or a Role DN is always processed to contribute a single vote (that is, when one member of a group or role claims an activity, the rest of the members of the group or role can no longer see or claim the activity), regardless of the Approver Type.

The following table provides examples of valid addressee expressions that you can create using the ECMA expression builder.

Table 7-6 Examples of Addressee Expressions

Type of Expression

Example

Individual user DN

'cn=jdoe,ou=users,ou=mysample,o=myorg'

Individual group DN

'cn=Accounting,ou=groups,ou=mysample,o=myorg'

Individual role DN

'CN=Administer Drugs,CN=Level10,CN=RoleDefs,CN=RoleConfig,CN=AppConfig,' + PROVISIONING_DRIVER’

A vector of DNs (can include user, group, or role DNs

function DNVector() { v=new java.util.Vector(); v.add('CN=jdoe,' + USER_CONTAINER); v.add('CN=Accounting,' + GROUP_CONTAINER); v.add('CN=jsmith,' + USER_CONTAINER); v.add('CN=bsmith,' +  USER_CONTAINER);
v.add('CN=Administer Drugs,CN=Level10,CN=RoleDefs,CN=RoleConfig,CN=AppConfig,' + PROVISIONING_DRIVER);
return v; };
DNVector();

Relationship Between Addressee and Approver Type

Because the addressee is the approver, the behavior of the workflow and the total number of affirmative approvals needed varies depending on the type of Addressee that is specified by the Addressee expression, and the Approver Type that is selected.

Normal Approver Type

The following table describes the workflow behavior when different types of addressee are used with the Normal Approver Type.

Table 7-7 Workflow Behavior with the Normal Approver Type

Addressee Value

Description

Individual User DN

  • Only the user can see the Approval activity in his or her task list.

  • Only one approval is needed to complete the activity as Approved.

Individual Group DN

  • Each member of Group can see the activity in the task list.

  • When one member claims the activity, it is removed from the task lists of others.

  • Only one approval is needed to complete the activity as Approved.

Individual Role DN

  • Each member of the role can see the activity in the task list.

  • When one role member claims the activity, it is removed from the task lists of others.

  • Only one approval is needed to complete the activity as Approved.

Multiple User DNs

Not allowed.

Multiple Group DNs

Not allowed.

Multiple Role DNs

Not allowed.

Mixture of Users, Groups, and Roles

Not allowed.

Group DNs and Proxy Processing

If a workflow is assigned to a Group and e-mail notification is used for the approvals, all members of the group are sent an e-mail. If a proxy user is assigned to any members of the group, the processing works as follows:

  • If the approver is a single user then the e-mail notification is sent to both users (the original and proxy users).

  • If the approver is a group DN and one of the users in the group is assigned a proxy user, the user who is the proxy is not notified by e-mail when a new request is placed in the task list.

    If you want the proxy user to be notified by e-mail, assign the approval task to the members of the group and set the approver type to Group Approver. For example, if you assign the approval activity to:

    IDVault.get('cn=Marketing,ou=groups,ou=idmsample,o=novell' , 'group',
    'Member')


    When you set the approval type to Group, a notification is sent to each member's proxy, if the member has a proxy. One member of the group can claim and act on the approval task which is the same behavior as if you assigned it directly to the group DN.

Group Approver Type

The following table describes the workflow behavior when different types of addressee are used with the Group Approver Type.

Table 7-8 Workflow Behavior with the Group Approver Type

Addressee Value

Description

Individual User DN

  • Only the user can see the Approval activity in his or her task list.

  • Only one approval is needed to complete the activity as Approved.

Individual Group DN

  • Each member of Group can see the activity in his or her task list.

  • When one member claims the activity, it is removed from task lists of others.

  • Only one approval is needed to complete the activity as Approved.

Individual Role DN

  • Each member of the Role can see the activity in his or her task list.

  • When role one member claims the activity, it is removed from task lists of others.

  • Only one approval is needed to complete the activity as Approved.

Multiple User DNs

  • Each user in the virtual group can see the activity in his or her task list.

  • When one user from the virtual group claims the activity, the activity is removed from the task lists of others.

  • Only one approval is needed to complete the activity as Approved.

Multiple Group DNs

  • Each member in each of the groups can see the activity in his or her task list.

  • When one user from the virtual group claims the activity, the activity is removed from the task lists of others in all of the groups.

  • Only one approval is needed to complete the activity as Approved.

Multiple Role DNs

  • Each member in each of the roles can see the activity in his or her task list.

  • When one user from the one of the roles claims the activity, the activity is removed from the task lists of others in all of the other roles.

  • Only one approval is needed to complete the activity as Approved.

Mixture of Users, Groups, and Roles

  • Each user and member of each Group or Role can see the activity in his or her task list.

  • When one of the approvers claims the activity, the activity is removed from the task lists of others.

  • Only one approval is needed to complete the activity as Approved.

Multiple Approver Type

The following table describes the workflow behavior when different types of addressee are used with the Multiple Approver Type.

Table 7-9 Workflow Behavior with the Multiple Approver Type

Addressee Value

Description

Individual User DN

  • Only the user can see the activity in his or her task list.

  • Only one approval is needed to complete the activity as Approved.

Individual Group DN

  • Each member of the group can see the activity in his or her task list.

  • When one member claims the activity, the activity is removed from the task lists of others.

  • Only one approval is needed to complete the activity as Approved.

Individual Role DN

  • Each member of the role can see the activity in his or her task list.

  • When one role member claims the activity, the activity is removed from the task lists of others in the role.

  • Only one approval is needed to complete the activity as Approved.

Multiple User DNs

  • Each user can see the activity in his or her task list.

  • Each user can claim the activity.

  • Approval of each user is needed to complete the activity as Approved.

  • Any single denial completes the activity as Denied.

Multiple Group DNs

  • Each member in each of the groups can see the activity in his or her task list.

  • When one member from a group claims the activity, the activity is removed from the task list of others in that Group.

  • Each group must supply one approval to complete the activity as Approved.

  • Any single denial completes the activity as Denied.

Multiple Role DNs

  • Each member in each of the roles can see the activity in his or her task list.

  • When one member from a role claims the activity, the activity is removed from the task list of others in that role.

  • Each role must supply one approval to complete the activity as Approved.

  • Any single denial completes the activity as Denied.

Mixture of Users, Groups, and Roles

  • Each user and each member of each group or role can see the activity in his or her task list.

  • Each user can claim the activity, and one member of each group or role can claim the activity (then others in the group or role do not see the task.)

  • Each user and one member of each group or role must approve to complete the activity as Approved.

  • Any single denial completes the activity as Denied.

Quorum Approver Type

The following table describes the workflow behavior when different types of addressee are used with the Quorum Approver Type.

Table 7-10 Workflow Behavior with the Quorum Approver Type

Addressee Value

Description

Individual User DN

  • Only the user can see the activity in his or her task list.

  • Only one approval is needed to complete the activity as Approved.

Individual Group DN

  • Each member of the group can see the activity in his or her task list.

  • When one member claims the activity, the activity is removed from the task lists of others.

  • Only one approval is needed to complete the activity as Approved.

Individual Role DN

  • Each member of the role can see the activity in his or her task list.

  • When one member claims the activity, the activity is removed from the task lists of others.

  • Only one approval is needed to complete the activity as Approved.

Multiple User DNs

  • Each user can see the activity in his or her task list.

  • All users can claim the activity simultaneously.

  • An absolute number or specified percentage of Addressees must approve to complete the activity as Approved.

Multiple Group DNs

  • Each member in each group can see the activity in his or her task list.

  • One member of each group can claim the task (then others in the group do not see the task).

  • An absolute number or specified percentage of Addressees must approve to complete the activity as Approved.

Multiple Role DNs

  • Each member in each role can see the activity in his or her task list.

  • One member of each role can claim the task (then others in the roles do not see the task).

  • An absolute number or specified percentage of Addressees must approve to complete the activity as Approved.

Mixture of Users, Groups, and Roles

  • Each user and each member of each Group or Role can see the activity in his or her task list.

  • Each user can claim the activity, and one member of each group or role can claim the activity (then others in the group do not see the task).

  • An absolute number or specified percentage of Addressees must approve to complete the activity as Approved.

Troubleshooting Invalid Addressees

If the expression specified in the Addressee property of an Approval activity evaluates to a non-existent DN (for example, if the expression was hard-coded incorrectly, calculated incorrectly, or submitted incorrectly by a user selection), no indication is given that the workflow is not processing normally, when it is in fact orphaned. The application server console displays a normal forward message, and the Comment and Flow history shows a normal “assigned” message. To avoid this problem, we recommend that you follow these best practices:

  1. Use a Condition activity before the Approval activity and validate the addressee in the Condition activity.

  2. Since the addressee could still be deleted after the addressee is validated in the Condition activity, you should specify, for the Approval activity, a timeout interval and a link that performs the desired action in case the workflow times out.
