If you are
Interested in what’s new
See New in Vibe 4.0.8.
Upgrading to Vibe 4.0.8
Installing Vibe 4.0.8
New to Vibe
Interested in issues and caveats
The following sections.
The Vibe installation program is a 32-bit application.
Before installing Vibe 4.0.8 on SLES 15, you must install the following packages:
Consider the following before upgrading Vibe.
Vibe 4.0.8 doesn’t support Microsoft SQL Server 2008 as its database.
If your Vibe installation uses MS SQL Server version 2008 as its database, you must do the following before upgrading to Vibe 4.0.8:
If you haven’t already done so, update your MS SQL server to version 2008 R2 SP3. (SP3 is required for updating to version 2012.)
Make sure that Vibe is running normally.
Upgrade to Vibe 4.0.8.
In some cases, after upgrading from Vibe 4.0.5 to 4.0.8, non-administrative users on Chrome and Firefox browsers can’t log in.
Clearing browser cookies and cache resolves this issue.
After updating your Vibe system to a new version, users might experience performance degradation when they first navigate the Vibe system. This is because Vibe must compile the JSPs after an update.
If you use a self-signed certificate for a WebDAV server, and if a Vibe server's authentication to that WebDAV server fails due to TLS errors after upgrading to version 4.0.8, see Vibe to WebDAV: Self-Signed Certs Require Manual Import.
For example, if your Vibe system is running on SLES 11, be sure to migrate to a supported SLES platform before proceeding.
When you update your high availability Vibe system to Vibe 4 or later from an earlier version, any deferred log records that currently exist become incompatible with each other.
To ensure that no incompatibility issues arise with deferred update logs during the update to Vibe 4 or later, you must clear all deferred update logs prior to upgrading.
For information on how to clear deferred update logs, see Micro Focus Vibe 4.0.8 Administration Guide.
Short forms of URLs that were created prior to Vibe 4 do not work in Vibe 4
You need to recreate the URLs after upgrading to Vibe 4.
If you have created a mapped drive to a Vibe 3.x folder via WebDAV (as described in Micro Focus Vibe 4.0.8 Advanced User Guide.), the WebDAV URL is no longer valid after upgrading to Vibe 4.x, and the mapped drives are no longer functional.
You must re-create any mapped drives that were previously created via WebDAV after upgrading to Vibe 4.
Be aware of the following restrictions on special characters, double-byte characters, and so on.
Vibe Usernames cannot contain special characters ( / \ * ? " < > : | ‘ ) because these characters are not legal characters in Linux and Windows pathnames.
Although LDAP directories might allow the characters, and the names might synchronize to the Vibe site with no errors, Vibe cannot create paths to the user workspaces and the associated users can’t log in.
Additionally, Vibe’s Edit-in-Place feature requires that passwords contain only ASCII characters, due to a WebDAV limitation when interacting with third-party products, such as MS Office. See Usernames and Passwords Restricted to ASCII Characters.
Do not use extended characters or double-byte characters in the installation directory name for Micro Focus Vibe. The default location for the Vibe software is:
Do not use extended characters or double-byte characters in directory names in the path to the Micro Focus Vibe file repository. The default location for the file repository root directory is:
On the Configure Default Settings page of your workspace, thefield does not accept extended characters. Use only alphabetic characters and numbers in simple URLs.
Be aware of the following:
Running the managedatabase.sh script as described in Vibe 4.0.8 Installation Guide, requires that JDK 11 or later be installed on the remote server.
You might receive database errors referring to Lock wait timeout exceeded.
To resolve these errors:
Open the MySQL configuration file in a text editor.
The MySQL configuration file is at the following location, depending on your operating system:
c:\Program Files\MySQL\MySQL Server version\my.ini
Add the following section to the MySQL configuration file:
[mysqld] transaction-isolation = READ-COMMITTED
Save your changes and close the editor.
If you use the Date attribute in a custom entry or view, users in different time zones might see a different date than you see.
Micro Focus Vibe stores the date as midnight on the selected date in the Vibe user’s time zone in GMT. For example, January 13, 2015 in the Mountain time zone is stored as GMT-7:00 (20150113T0700). No problem appears for people in the same time zone. However, for people in a different time zone, Mountain time zone midnight could be a different day in their time zone.
In order to access a Micro Focus Vibe site from a web service client, such as the GroupWise Windows client, the time setting on the user’s workstation must match the time setting on the Vibe server within five minutes. If there is a discrepancy of more than five minutes, the web service client’s attempt to contact the Vibe site times out. If possible, reset the time of the server or the workstation to the correct and matching time.
If the time difference is a necessary part of your system configuration, you can change the timeout setting for Web services such as GroupWise that authenticate to the Vibe site through WS-Security.
Make a backup copy of the following file:
Open the server-config.wsdd file in a text editor.
Search for the following section:
<handler type="java:org.apache.ws.axis.security.WSDoAllReceiver"> <parameter name="passwordCallbackClass" value="org.kablink.teaming.remoting.ws.security.PWCallback"/> <parameter name="action" value="UsernameToken Timestamp"/> </handler>
Insert a timeToLive parameter with large timeout value (for example, 86400 for 24 hours).
<handler type="java:org.apache.ws.axis.security.WSDoAllReceiver"> <parameter name="passwordCallbackClass" value="org.kablink.teaming.remoting.ws.security.PWCallback"/> <parameter name="action" value="UsernameToken Timestamp"/> <parameter name="timeToLive" value="86400"/> </handler>
Save the server-config.wsdd file, then restart the server.
If you have re-compiled or re-built Vibe in a Development environment, your Vibe installation is not supported by Micro Focus.
This excludes JSP-based changes made to facilitate the development of custom Forms and Views.
By default, Micro Focus Vibe SOAP payloads do not generate multi-reference values. You can change the server-config.wsdd files so that multi-reference values are generated.
Change to the directory where a server-config.wsdd file is located.
A Vibe installation includes two server-config.wsdd files. The default locations of these files vary by platform:
c:\Program Files\Novell\Teaming\apache-tomcat-version\webapps\ ssf\WEB-INF c:\Program Files\Novell\Teaming\apache-tomcat-version\webapps\ ssr\WEB-INF
In the following line, change false to true:
<parameter name="sendMultiRefs" value="false"/>
Save the server-config.wsdd file, then exit the text editor.
Create a backup copy of the modified server-config.wsdd file.
If you update the Vibe software, the server-config.wsdd file is overwritten by the Vibe Installation program. You must either restore the updated file after the update or repeat the modification.
Repeat the procedure for the second server-config.wsdd file in the Vibe software.
Microsoft Office file that is on the Vibe site fails to save after editing with the Edit-in-Place option. This issue exists with Microsoft Office 2019, Microsoft Office 2016, and Office 365 files.
To save an MS Office file that is on the Vibe site, you must change the settings as below:
Open a file (Word/PowerPoint/Excel) and patch it with the latest update, click.
Add a host-name via which you are accessing the Vibe, click.
Select the checkbox.
Click https://< Vibe Hostname>: <port number if required>.and enter the trusted location path, for example,
Select the checkboxto apply trusted location for the sub folders and click to change the settings.
You can edit the file with the Edit-in-Place option andthe file.
Because of a limitation in the interaction between WebDAV and third-party applications, such as MS Office, only ASCII characters are supported in authentication requests.
If your Vibe users rely on Edit-in-Place functionality, they must not include double-byte or extended characters in their passwords.
Usernames are restricted for other reasons as well, as explained in Vibe Usernames (and Passwords).
If Word or PowerPoint filenames contain spaces or double-byte characters, the Edit-in-Place function doesn’t open them on Mac workstations, regardless of the browser being used.
Because Photoshop does not support editing via a WebDAV URL, photoshop files cannot be edited by using Vibe’s Edit-in-Place functionality,
When a file has extended characters in its name and is opened for editing through Internet Explorer 11, its name displays with odd characters in the application header.
Editing integrity is unaffected by this, and when the file is saved, the original name is preserved.
When files are opened through Chrome or Firefox, their names display properly in the application header.
When you copy a workspace, the custom form and workflow definitions in that workspace are not transferred to the copy of the workspace.
You can work around this limitation by moving the definitions to a higher level in the workspace tree.
Navigate to the folder in the original workspace where the definitions are located.
On the Workspace toolbar, click.
Expand the Form and View Designers tree, then click the definition that you want to move.
In the Definition Properties box, clickto display the workspace and folder tree for your Vibe site, then expand the tree as needed to display an appropriate destination for the definition.
To make the definition available in the copy of the original workspace, move the definition to a location in the tree that is above both the original workspace and the copy of the workspace.
To make the definition available globally on your Vibe site, move it to the root of the workspace and folder tree.
To move the definition, select the destination, then click.
Clicktwice to return to the main Vibe page.
Verify that the definition is now available in the copy of the workspace.
Repeat this procedure for each definition that needs to be available in the copied workspace.
When exporting a workspace, if the total file size is 4 GB or larger, the exported .zip file is corrupted and won’t open.
Downloading multiple files using Safari on Mac, requires that the optionis not selected.
On the General tab, ensure thatis not selected.
You cannot use thefeature to move one Mirrored File folder inside of another Mirrored File folder.
If you edit a file in a mirrored folder and then check the version history, you see only the latest version of the file and only the latest version of the file is available for editing from the mirrored location. This is working as designed. Document versioning is not currently available in mirrored folders.
If you move a main (parent) task to another location on the Vibe site, all sub-tasks beneath that main task--even sub-tasks of sub-tasks (nested tasks)--all become main tasks within the original Tasks folder.
Because of database restrictions, the maximum number of nested folders and workspaces that Vibe allows is 45. For example, you can create a folder within a folder, then create a folder within that folder, and so forth, until the folder structure is 45 levels deep. You cannot exceed 45 levels in the folder structure.
When a file contains multiple versions and a user attempts to add a note about the oldest version (Micro Focus Vibe 4.0.8 User Guide), the note is not always displayed.
Files that have been password-protected in the application where they were created cannot be viewed on the Micro Focus Vibe site. This is working as designed.
When an exported workspace, folder, or entry has a link to something that isn’t included in the export file, the link doesn’t work correctly when it is imported to a different Vibe system.
Micro Focus Vibe uses Micro Focus KeyView for displaying documents and images on the Vibe site and for indexing documents. This viewer technology relies on the latest Microsoft Visual C++.
If the Windows server where you install Vibe does not already have the 2010 or 2013 version of the appropriate Visual C++ Redistributable Package installed, you must install it before your Vibe site can function properly. The required versions of the Visual C++ Redistributable Packages are available through the Microsoft Download Center.
IMPORTANT:Versions of Visual C++ later than 2010 or 2013 do not work.
If you see an HTML Conversion Error when you try to view a file, KeyView might not support the file type.
If the GUID Attribute is not specified when setting up your LDAP sources, then renaming or moving users in your LDAP directory might result in new users being created in Vibe.
If you create Micro Focus Vibe users by importing users from an LDAP source, make sure that the LDAP attribute that you designate for thehas a unique value for each LDAP user.
For example, if you are using the cn attribute for the value of the , and if you have multiple users with the same cn value, only the first user found is synchronized to Vibe. Subsequent users with the same cn value are ignored.
To esure that all users get imported, use an attribute whose value is guaranteed to be unique across all containers, such as emailAddress.
You can view current Micro Focus Vibe license usage by clicking theicon, then under , clicking .
The Administrator counts as a user against the license total, but Guest and the three internal/local users (_emailPostingAgent, _jobProcessingAgent, and _synchronizationAgent) do not.
When Mac users launch the Vibe 4.0.8 desktop client for the first time, they might get a notice that the Vibe Desktop wants to use confidential information that is stored in their keychain.
To use the Vibe desktop, users must enter their workstation password and select eitheror as many times as prompted.
After upgrading to the Vibe 4.0.8 desktop client, when the old client shuts down, the new client might fail to launch.
If that happens, users should manually restart the client. Normal operation will then resume.
NFS file system mounts are not supported for connecting the Lucene Index server with the Lucene index.
GroupWise servers prior to version 2018 accept both insecure and secure SMTP communications by default.
Beginning with GroupWise 2018, the servers only accept secure SMTP communications by default.
If after upgrading to GroupWise 2018, Vibe’s outbound email messages are not being received, do one of the following:
Modify the SMTP settings on the GroupWise server to allow non-SSL communications.
In the GroupWise Administration Console, clickand change SMTP to . (See the GroupWise documentation for more information.)
Set up SSL communications between Vibe and the mail server by importing the GWIA's SMTP Certificate into the Vibe JRE certificate store. See Micro Focus Vibe 4.0.8 Administration Guide.
You cannot drag a file from a GroupWise message into the Vibe drag-and-drop window.on the Folder Entry toolbar).
Save the attachment first, then drag and drop the saved file into the drag-and-drop window.
When Vibe sends tasks to Outlook via an iCal attachment, the tasks appear as calendar events rather than as task items.
This is because of an issue with the way Outlook handles iCal events.
For more information about how Vibe uses iCal attachments to send calendar events and task items, see Micro Focus Vibe 4.0.8 User Guide.
If Outlook users send postings to the Micro Focus Vibe site and if the messages have attachments with extended or double-byte characters in the filenames, the attachment does not arrive on the Vibe site unless the Exchange server is properly configured. To configure the Exchange server to pass the filenames correctly, follow the instructions in Foreign Characters Appear as Question Marks When Sent from OWA.
When you create or modify attributes for the User Profile form and view in the Form and View Designers tool, you cannot reference custom JSP files.
Modifying attributes for workspaces, folders, and entries is supported, as described in Micro Focus Vibe 4.0.8 Advanced User Guide.
An External User will see a broken profile image icon for an Internal User under the following conditions:
The Internal User has the Can Only See Members of Groups I Am In (COSMOGIAI) profile attribute set.
The Internal User has uploaded a non-default profile picture, such as a selfie or other image.
The Internal User shares an item with the external user or posts an entry in a workspace that they both have access to, etc.
The External User doesn’t have the COSMOGIAI profile attribute set.
If the External User also has the COSMOGIAI profile attribute set, the default profile picture (grey man) is displayed with the shared item or workspace post.
If you want to use an SSL connection between your Micro Focus Vibe site and a WebDAV server, and if the WebDAV server has a self-signed certificate rather than a certificate provided by a certificate authority, you must manually import the self-signed certificate to the JDK.
IMPORTANT:The Oracle JDK work-around for this issue, recommended in Vibe 4.0.4 and earlier, is no longer supported.
For a list of the bugs that have been fixed since Vibe 4.0.8, see the Vibe 4.0.8 Bug List.
The following sources provide information about Micro Focus Vibe 4:
Online product documentation: Micro Focus Vibe 4 Documentation Web site
Product documentation included within Micro Focus Vibe. Click theicon (question mark) in the upper right corner of the Vibe Home page.
In addition to the Micro Focus Vibe product documentation, the following resources provide additional information about Vibe 4:
WebDAV Support: WebDAV Support with updated Milton jars.
No appserver.log file created.
'Delete All' from Trash does not work.
Security Updates: Upgraded OpenJDK and Apache Tomcat libraries to fix the security vulnerabilities.
Security Updates: Upgraded libraries to Apache Log4j2 to fix the security vulnerabilities in Apache Log4j. This change has the following impact:
The log4j.properties file is changed to log4j2.properties.
The log4j2.properties file has a new format to set the log levels. For example,
log4j2.properties format (new):
log4j.properties format (old): log4j.category.org.kablink.teaming.spring=WARN
Comment or uncomment both the lines to enable or disable logs for a particular class.
Vibe 4.0.7 includes the following:
Secure communications with Vibe now require TLS 1.2 exclusively.
The iOS app is also refurbished but does not require a new installation.
Workflow viewer refinements.
A sizable navigation panel.
Manage-database script enhancements that automate setting the JAVA Path.
Improvements to Edit-in-Place so that it now works with the MS Office Add-in.
Faster Tomcat startup.
Guest user’s default language is now set based on the browser being used.
Vibe video streaming now works in the Safari browser.
Architecture component updates and changes:
Along with fixes for customer-reported bugs, Vibe 4.0.5 includes substantial changes and updates, including the following:

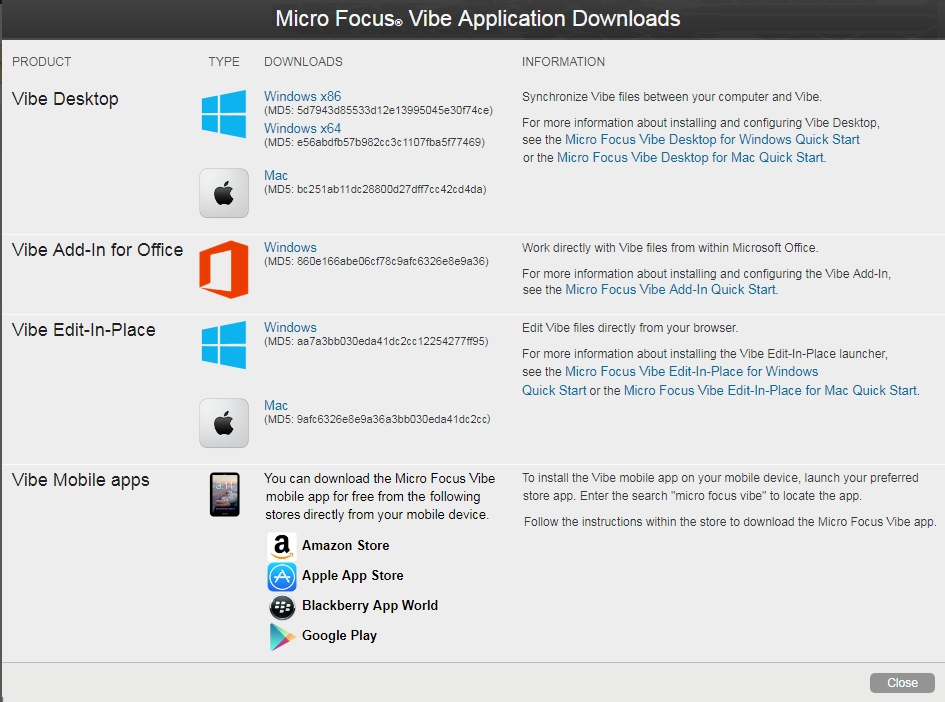

The Vibe download page for user applications has been redesigned and its scope expanded, as shown in the following screenshot:
As a result, starting with Vibe 4.0.5, the Vibe Desktop and Vibe Add-In for Office are no longer distributed through the Customer Center.
Beginning with version 4.0.5, the CSRF protection that was included but not enabled in Vibe 4.0.3, is enabled by default.
CSRF attacks occur when malicious websites are able to pose as authenticated users, request additional browser sessions, and then make unwanted changes to a site.
Micro Focus realizes that this protection is likely to break customizations that partners and customers have created, such as JSPs, Vibe-targeted external applications, and so on.
For this reason, CSRF protection can be temporarily disabled while the customized pieces are fixed.
Using a text editor, open the ssf-ext.properties file for editing. Default file locations are:
Windows: c:\program files\novell\teaming\apache-tomcat\webapps\ssf\WEB-INF\classes\config
Change csrf.enable=true to csrf.enable=false.
Save the file.
The team has replaced the Edit-in-Place Java applet with platform-specific executables that support a new service named
Vibe URI, which is similar to MS URI functionality but is not limited to only Microsoft Office.
Vibe URI supports Mac and Windows workstations with LibreOffice or Microsoft Office installed.
For information and instructions on setting up Vibe URI (also known as Vibe Edit-in-Place), see Micro Focus Vibe 4.0.8 Administration Guide.
Vibe’s traditional file-upload functionality is being replaced by HTML5-based functionality across the product. Functionality from an end user’s perspective is mostly unchanged.
Multiple-file selection and uploading is supported; folder-uploading is not supported.
Micro Focus Vibe runs inside a Java Virtual Machine (JVM).
Starting with version 4.0.5, Micro Focus Vibe includes a customized version of OpenJDK. Installing a separate JDK and JRE is not required, nor is it supported.
IMPORTANT:If you want to use an SSL connection between your Micro Focus Vibe site and a WebDAV server, and if the WebDAV server has a self-signed certificate rather than a certificate provided by a certificate authority, you must manually import the self-signed certificate to the JDK. The basic process is the same as that described in Securing LDAP Synchronization in the Micro Focus Vibe 4.0.8 Administration Guide.
Starting with Vibe 4.0.5, Micro Focus KeyView replaces Oracle Stellent for HTML-viewing and text-filtering (search indexing) functionality.
From a Vibe user perspective, functionality is unchanged.
Beginning with version 4.0.5, Vibe is supported on SuSE Linux Enterprise Server (SLES) 15. For a list of all supported server platforms, see Vibe 4.0.8 Installation Guide.
Vibe’s Workflow Designer applet has been replaced with HTML5-based functionality.
The main focuses of the Vibe 4.0.4 release are
IMPORTANT:Starting with Vibe 4.0.4, the default solution for editing files that are accessed through a web browser, has been switched from a Java Applets-based solution to Microsoft’s Universal Resource Identifier (MS URI) technology.
This allows users to edit files from a Windows workstation with MS Office 2010 or later installed. For more information about this change, see Micro Focus Vibe 4.0.8 User Guide.
The main focuses of the Vibe 4.0.3 release are
The main focuses of the Vibe 4.0.2 release are
Custom JSPs: Addressing many of the concerns expressed by those using custom JSPs.
Rebranding: Reflecting Micro Focus ownership and development.
The Vibe 4.0.2 development team has also delivered
An interim solution for the Java applet challenges seen by Vibe 4.0.1 users wanting to use Vibe’s “Edit-in-Place” feature.
For Firefox users, the experience is exactly as it was before the browser withdrew NPAPI support. Users of Chrome and Microsoft Edge browsers must choose to run the applet that is automatically downloaded.
The ability for administrators to require Custom Terms and Conditions for external users.
Product improvement tracking of KeyShield use.
LDAP for External Users: When defining an LDAP resource, you can now specify whether the imported users are treated as internal or external by Vibe. See Micro Focus Vibe 4.0.8 Administration Guide.
For a list of Micro Focus Vibe user enhancements and instructions for use, see:
Database Changes: Vibe now requires you to create the database.
Specify File Types for Document Conversions during Installation: Previous versions of Vibe allowed you to configure the file formats that could be converted to HTML by editing configuration files. Vibe 4.0 provides a graphical interface during installation for configuring the file formats that can be converted to HTML and viewed from Vibe.
For more generic information on document conversions in Vibe, see Micro Focus Vibe 4.0.8 Administration Guide.
Ability to specify a From email address for outbound email: You can specify an email address to be used as the From address of emails sent from Vibe.
LDAP Synchronization Improvements: The following improvements were made to LDAP synchronization:
Synchronization performance improvements
Performance improvements in Vibe 4.0 as compared with Vibe 3.4:
When synchronizing 1 to 10,000 users - 3x improvement
When synchronizing 10,000 to 30,000 users - 5x improvement
When synchronizing 30,00 to 60,000 users - 10x improvement
Improved interface, with a tabbed view
LDAP browser for selecting users and containers in your directory for LDAP configuration
Support for non-unique group names
Ability to preview an LDAP synchronization (display the users and groups that will be added, deleted, or disabled in Vibe) before the LDAP synchronization runs
Filter users and groups on Sync Results pages
For more information, see Micro Focus Vibe 4.0.8 Administration Guide.
Sharing: The following administration improvements were made for sharing:
Ability to determine whether LDAP groups can be used when sharing: New option to allow you to control whether groups that were imported from the LDAP directory are displayed in thefield when users are sharing an item.
Whitelist or blacklist for sharing: You can create a whitelist or blacklist for sharing with certain email addresses and domains.
New sharing option for File Link: Grant users the ability to share files by distributing a link to the file. Any person with access to the link then has access to the file.
Ability to Reset the Administrator User ID: You can reset the user ID for the Vibe administrator.
For more information, see Micro Focus Vibe 4.0.8 Administration Guide.
Improved Method for Resetting Passwords: It is easier than ever for local and external users to reset their passwords. This method also applies to the Vibe administrator.
For information about how to reset the password for the Vibe administrator, see Micro Focus Vibe 4.0.8 Administration Guide.
New user interface for granting administrator privileges: It is now easier to grant administrator rights to users and groups.
Team management administration: You can more easily view and manage team workspaces across your Vibe site.
Improved handling of external users: In Vibe 3.4, marking a user as external was a manual process. External user accounts are now created automatically when a workspace, folder, or entry is shared with someone outside of the organization.
External user accounts from Vibe 3.4 are maintained after upgrading to Vibe 4.
Ability to disable access to the web client: You can disable users’ ability to access Vibe via a web browser. Users can then access Vibe only through Vibe Desktop or through the Vibe mobile app.
Support for multiple groups with the same name: In the Type-to-Find drop-down list, Vibe now includes the group name or group title, as well as secondary information about the group (either the group description or the Fully Qualified DN). This secondary information helps distinguish between multiple groups that have the same name.
Ability to specify a maximum number of REST requests: You can specify the maximum number of concurrent upload and download requests made by Vibe Desktop and mobile applications.
For more information, see Vibe 4.0.8 Installation Guide.
Centralized Trash Management: All items that have been sent to the trash are now visible in one location and can be restored or permanently deleted.
Data Quota on Outgoing Mail Messages: You can set a data quota on outgoing mail messages. The combined size of all attachments in a single outgoing email cannot exceed the quota that you set.
For more information, see Micro Focus Vibe 4.0.8 Administration Guide.
Download Vibe Desktop and Add-In from the Web Client: You can make the Vibe Desktop and Vibe Add-In available to users from the Vibe web client.
For more information, see Micro Focus Vibe 4.0.8 Administration Guide.
Exporting and Importing Folders Includes Global Filters: When you export and import folders out of and into Vibe, all global filters are included in the export and import. (Personal filters are not included.)
Workspace Templates Can Be Created at a Non-Global Level: You can create workspace templates and make them available to only specific workspaces, rather than making them available at a global level.
Automatically Delete or Archive Audit Trail and Change Log Entries: You can configure Vibe to automatically delete or archive Audit Trail and Change Log entries after a given number of months. This is helpful if these logs are consuming a lot of disk space.
Single Sign-On Support with KeyShield: You can provide single sign-on to your Vibe site with KeyShield (KeyShield license not included).
Ability to Deter Brute-Force Attacks with CAPTCHA: By default, CAPTCHA is now enabled on the Vibe site, securing the Vibe web application against brute-force attacks.
For information about how to enable CAPTCHA and set various configuration options, see Securing against Brute-Force Attacks with CAPTCHA.
Ability to Secure User Passwords: You can require the passwords of local and external users to meet certain password requirements.
Copyright © 2018 - 2022 Micro Focus or one of its affiliates.
The only warranties for products and services of Micro Focus and its affiliates and licensors (“Micro Focus”) are as may be set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Micro Focus shall not be liable for technical or editorial errors or omissions contained herein. The information contained herein is subject to change without notice.
