4.2 Setting Properties on a Single Workstation after Installation

  1. At the user’s workstation, right-click the Novell Client tray application icon icon in the notification area of the taskbar.

  2. Click Novell Client Properties.

  3. Set any of the following properties that you want to change:

  4. Click OK to set the changes and close the property pages.

4.2.1 Client Settings

Use the Client property page in the Novell Client for Windows Properties dialog box to view which version of the Novell Client you are running.

This page contains one option, Product name, which displays the product name and version.

Figure 4-1 Client Property Page

4.2.2 Login Profiles Settings

Use the System Login Profiles property page in the Novell Client for Windows Properties dialog box to create one or more system login profiles that a user can select when logging in. When the user selects the profile, the profile automatically sets up login information such as the user's name, server, context, login script, and other applicable information so that the user does not need to type this information. For more detailed information, see Section 8.6, Setting Up Login Profiles.

Figure 4-2 System Login Profiles Property Page

Adding a System Login Profile

  1. Right-click the Novell Client tray application icon icon in the notification area of the taskbar.

  2. Click Novell Client Properties, then click the System Login Profiles tabbed page.

  3. Type the name of the profile you want to add in the New System Login Profile text box.

  4. Click Add.

  5. In the Novell Login dialog box, specify the login information you want for this profile, such as the user's name, server, and context.

  6. Click OK to close the Novell Login dialog box, then click OK to close the Novell Client Properties dialog box.

Viewing or Editing a System Login Profile's Properties

  1. Right-click the Novell Client tray application icon icon in the notification area of the taskbar.

  2. Click Novell Client Properties, then click the System Login Profiles tabbed page.

  3. I n the System Login Profiles list, select the name of a profile.

  4. Click Properties.

  5. In the Novell Login dialog box, view or modify the login information you want for this profile, such as the user's name, server, and context.

  6. Click OK to close the Novell Login dialog box, then click OK to close the Novell Client Properties dialog box.

Removing a System Login Profile

  1. Right-click the Novell Client tray application icon icon in the notification area of the taskbar.

  2. Click Novell Client Properties, then click the System Login Profiles tabbed page.

  3. In the System Login Profiles list, select the name of the profile you want to remove.

  4. Click Remove.

  5. Click OK to close the Novell Client Properties dialog box.

4.2.3 Advanced Login Settings

Use the Advanced Login property page in the Novell Client for Windows Properties dialog box to configure user login settings.

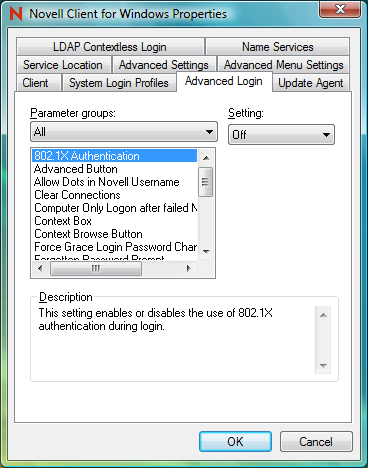

Figure 4-3 Advanced Login Property Page

Use the Parameter groups drop-down list to display all the advanced login parameters or to sort the parameters by function (Execution Options, Password, and Shown on Login). Select the parameter you want, then use the Setting option to configure the parameter. For most parameters, this consists of simply turning it On or Off. Some parameters require a filename or text or number setting. A short description of each parameter is available in the Description field when you select the parameter.

The Advanced Login parameters include the following:

  • 802.1X Authentication: Enables or disables the use of 802.1X authentication during login. For more information, see Section 8.8, Configuring 802.1X Authentication.

  • Advanced Button: Specifies whether the Advanced button on the Login dialog box is enabled. This button leads to various tabs that help you to specify advanced login parameters.

  • Allow Dots in Novell Username: If this setting is On, any periods entered in the Novell username are treated as part of the name, rather than as context delimiters. The user cannot enter the context as part of the username, but must enter it separately. This makes it possible for the user to log in with a username such as John.Smith to both Novell and Windows.

  • Allow Roaming User Profile Paths to non-Windows servers: Enables or disables the Windows Do not check for user ownership of Roaming Profile Folders policy. By default, Windows attempts to enhance profile security by checking the permissions on a remote roaming profile directory. But the check is performed in a Windows-specific manner, and this fails when the roaming profile path is to a Novell or other non-Windows-compatible resource. Setting this parameter to On allows roaming profile paths to Novell and other non-Windows server by disabling this Windows-specific security check. Note this policy is defined and controlled by Windows and not the Novell Client, so group policies and other Windows management tools may also set or change this policy (CompatibleRUPSecurity).

  • Clear Connections: Specifies whether the Clear Connections check box appears in the Login dialog box. The check box allows you to clear all previous connections when you create a new connection to the network.

  • Computer Only Logon: Specifies whether the Computer Only Logon option is shown when the Novell Logon option is presented by the Welcome screen. The Computer Only Logon option is used to log in to the Windows workstation without logging in to the Novell network.

  • Computer Only Logon after failed Novell Logon: Allows the user to log on to the computer after a failed Novell Logon attempt.

  • Computer Only Logon Default: Determines whether the Novell Client will default to the Computer Only Logon mode. Automatic means the Novell Client will remember when Computer Only Logon was the mode previously selected, and will continue defaulting to Computer Only Logon until Novell Logon mode is interactively selected again. Always means the Computer Only Logon will always be the default mode presented, even if Novell Logon was the previous mode used. Never means that Novell Logon will always be the default mode presented, even if Computer Only Logon was the previous mode used.

  • Context Box: Specifies whether the Context field is displayed on the Login dialog box.

  • Context Browse Button: Specifies whether the Contexts browse button is displayed in the Login dialog box.

  • Default bitmap for Novell Login dialog: Specifies the path and filename for a bitmap that will be used on the Novell Login dialog in place of the default Novell Client bitmap. Custom bitmap sizes can be used, but will affect the overall size of the Novell Login dialog.

  • Default bitmap for Welcome screen tiles: Specifies the path and filename for a bitmap that will be used on the Welcome screen tiles whenever a user-specific bitmap is not yet known. Note that Windows imposes the size limit on any bitmap used for a Welcome screen tile, and will stretch / deform the bitmap provided to conform to that limit as needed.

  • Force Grace Login Password Change: This setting forces users to change their passwords at the last grace login. With this setting activated, when the password expires, the password must be changed in order to successfully log in.

  • Forgotten Password Prompt: Specifies whether the Did you forget your password? prompt is displayed in the Login dialog box. This prompt provides an option to recover from a forgotten password based on an administrator-defined password policy. See Section 6.3, Using Forgotten Password Self-Service for more information.

  • Last Logged On User: Specifies whether the last logged on user is displayed along with the Novell Logon when logging on to the computer. Note this does not override the fact that the last logged on user is not displayed on Windows Server 2008 when Terminal Services are installed.

  • Login Profile List: Specifies whether the Login Profiles drop-down list on the Novell Login dialog box is enabled.

  • Login Windows password synchronization option default: This is the default state of the Change your Windows password to match your Novell password functionality that occurs during login to both eDirectory and Windows when the password are not already synchronized. This setting controls the default synchronization behavior that will occur, regardless of whether the "Show login Windows password synchronization option" is allow the checkbox to be shown to the user or not.

  • Login With Non-Novell Credential Provider: This setting controls whether a Novell login will still be attempted after the Windows logon, in cases where the Novell Client's credential provider was not used during the Windows logon.

  • NMAS Authentication: If this setting is On, Novell Modular Authentication Services (NMAS) is enabled during login. NMAS authentication adds additional security to the network. However, if your network does not use NMAS, login might take additional time and you might want to disable NMAS authentication by changing this setting to Off.

  • Novell Logon: Enables the Novell Logon option (tile) when logging on to the computer.

  • Prompt for Novell login during Windows AutoAdminLogon: If the Novell Login parameter is enabled, and Windows is configured to perform a Windows-only AutoAdminLogon as a specific user account, enabling this setting causes a Novell login to interactively prompt for eDirectory login information to be used in addition to the AutoAdminLogon-defined Windows login.

  • Server Connection Retries: This parameter controls the number of times that Login tries to establish a connection to a server. If Login tries to connect to a server and fails, it waits 1 second and then tries to connect again. It continues to do this until the number of retries has been reached. It is recommended that this setting be no higher than 20.

  • Show login Windows password synchronization option: Specifies whether the Change your Windows password to match your Novell password option is shown when logging in to both eDirectory and Windows when the passwords are not already synchronized.

  • Tree Box: Specifies whether the Tree field is displayed on the Login dialog box.

  • Tree Browse Button: Specifies whether the Trees browse button is displayed on the Login dialog box.

  • Variables Button: Specifies whether the Variables button in the Login dialog box is enabled. The button allows you to enter login script variables to be used when the user logs in.

  • Windows Password Synchronization: With this feature enabled, the user can change the Novell password, and the Windows password is set to the same value. Turning it off leaves the passwords separate unless they are synchronized through some other means (for example, Novell Identity Manager).

4.2.4 Update Agent Settings

The Novell Client Update Agent provides a workstation-initiated (manual or automatic) update of the Novell Client software. It launches acu.exe from a specified location. Update Agent can be run manually from the Red N menu or it can be configured to automatically check for updates at specified intervals.

If it is configured to check automatically, each time a user logs in to the network, Update Agent runs and determines if the preconfigured number of days have elapsed since the last upgrade check, then checks the specified location for a newer version of the client. If a newer version is found, ACU then launches the appropriate installation process.

Before workstations can check to see if updates are available, the Update Agent must be configured during a software installation. Or, you can configure the Update Agent on each machine locally through the Novell Client Property Pages.

The Update Agent is configured by modifying the Update Agent property page settings or (optionally) the Install.ini file. Because the Update Agent launches ACU, which in turn launches setup.exe, all of the configuration changes made to these subsequent utilities are used in the same way they would be when not running the Update Agent. For more information, see Setting Up the Novell Client Update Agent.

Figure 4-4 Update Agent Property Page

This page contains the following options:

  • Enable Automatic Update Agent: Select this check box to enable the automatic update agent, then use the Update Agent launch interval option to set the interval (in days) that the Novell Client Update Agent will check for a new version of the Novell Client.

  • Update Source(s): Select the Update Location check box to enable the Novell Client Update Agent to look for a new version of the Novell Client in the designated update location.

    The Update Agent checks for updates: first, in the Update Location; and second, in the Previous Install Location.

    The Update Agent looks in each enabled location for a valid set of Client installation files. Make sure that you that you have the latest Client installation files in the first location that the Update Agent searches.

  • Latest Novell Client Properties File: Displays the name, date, and time of the most recent Novell Client properties file used to apply Client settings on this workstation. For more information, see Section 2.2.1, Creating the Novell Client Properties File.

  • Use Administrator Privileges: If this option is selected, the Update Agent uses the Novell Client Update Agent service to install the Client. The service runs with elevated privileges required for a non-administrator to install the Client. If this setting is not selected, the user must be able to elevate to an administrator user to complete the Client installation.

4.2.5 Service Location Settings

Use the Service Location property page in the Novell Client for Windows Properties dialog box to manage a list of scope names to be reported to SLP applications for a workstation and a list of SLP Directory Agent addresses.

Figure 4-5 Service Location Property Page

This page contains the following options:

  • Scope List: A list of scope names to be reported to SLP applications on a workstation. Multiple scope names are allowed. The list order reflects the preference order. Scopes can also be configured via DHCP or discovered dynamically from Directory Agents.

    A scope is like a collection of services within a logical group. You might want to use a scope to create a group of directory agents and services registered with these directory agents in a large organization.

    To add a scope to the list, specify a name, then click Add. To remove a scope from the list, select a name in the Scope list, then click Delete. To replace a scope in the list with a new scope, type the name of the new scope, select the name of the item you want to replace, then click Replace. Use the Up and Down buttons to move a scope up or down in the list.

  • Directory Agent List: A list of SLP Directory Agent addresses. Multiple Directory Agent addresses are allowed. Each address is a fully qualified domain name (DNS), or a dotted decimal IP address. Directory Agents can also be configured via DHCP, or discovered dynamically.

    To add a Directory Agent to the list, specify a name, then click Add. To remove a Directory Agent from the list, select a name in the Directory Agent list, then click Delete. To replace a Directory Agent in the list with a new Directory Agent, type the name of the new Directory Agent, select the name of the item you want to replace, then click Replace. Use the Up and Down buttons to move a Directory Agent up or down in the list.

4.2.6 Advanced Settings

Use the Advanced Settings property page in the Novell Client for Windows Properties dialog box to configure connection, packet management, performance, cache, and SLP settings.

Figure 4-6 Advanced Settings Property Page

Use the Parameter groups drop-down list to display all the Advanced Settings parameters or to sort the parameters by function (Connections, Packet Management, Performance, Cache, and SLP). Select the parameter you want, then use the Setting option to configure the parameter. For most parameters, this consists of simply turning it On or Off. Some parameters require a number setting. A short description of each parameter is available in the Description field when you select the parameter.

The Advanced Settings parameters include the following:

  • Auto Reconnect: Enables or disables Novell Client auto reconnect.

  • Auto Reconnect Interval: Specifies the delay in seconds between Client reconnect attempts.

  • Cache Page Size: Specifies the size of a cache page in kilobytes. This setting multiplied by the Cache Pages is the amount of physical memory consumed by the cache. It is the largest read-ahead or write-behind that will be performed.

  • Cache Pages: Specifies the number of available cache pages. This setting multiplied by the Cache Page Size is the amount of physical memory consumed by the cache.

  • File Caching: This controls whether the Client caches files locally or not.

  • File Commit: Controls whether buffers flushed by an application are committed to disk on the server. Setting this value to On ensures data integrity at the expense of performance by ensuring that file buffers are committed to disk on the server when an application flushes its file buffers.

  • First Network Drive: This parameter sets the first network drive to the drive letter of choice when you connect to a Novell server. The first network drive applies to any user logging in to the network using the workstation where it is set.

  • Lazy Close: Delays the file close on the network, allowing the file to be reopened without accessing the network.

  • Receive Broadcast Messages: Tells the client which broadcast message, if any, to receive. You can choose one of the following settings: All (receive all broadcast messages), Server Only (receives broadcast messages sent by the server only), or None (do not receive any broadcast messages).

  • Signature Level: Determines the level of enhanced security support. Enhanced security includes the use of a message digest algorithm and a per connection/per request session state. The values are as follows: 0 = disabled, 1 = Enabled but not preferred, 2 = Preferred, 3 = Required. Setting the value of this parameter to 2 or 3 increases security but decreases performance.

  • SLP Broadcast Only: Enables or disables a broadcast only network for this SLP agent. If this option is set to On, the SLP agent must send only broadcast messages (in other words, it forces broadcasts to be used instead of multicasts). If this option is set to Off, the SLP agent can send multicast messages.

  • SLP Maximum Results: Specifies the maximum number of results to accumulate and return for a synchronous request before the timeout, or the maximum number of results to return through a callback if the request results are reported asynchronously.

  • UNC Path Filter: Enables or disables the UNC Path Filter. Filters requests for UNC path resolution sent to the Client for Microsoft Networks (Microsoft redirector). When enabled, UNC path queries sent to the Microsoft redirector will first be filtered by the Novell Client to determine if the server name is known to be a Novell resource. If it is determined to be a Novell resource, the UNC path request will not be allowed to proceed to the Microsoft redirector. This can help avoid unnecessary delays caused by repeated failing attempts to access the Novell resources as though it might be a Windows server.

4.2.7 Advanced Menu Settings

Use the Advanced Menu Settings property page in the Novell Client for Windows Properties dialog box to determine which options are available to users on the Red N menu when they right-click the Novell Client tray application icon icon in the notification area of the taskbar, or in other context menus.

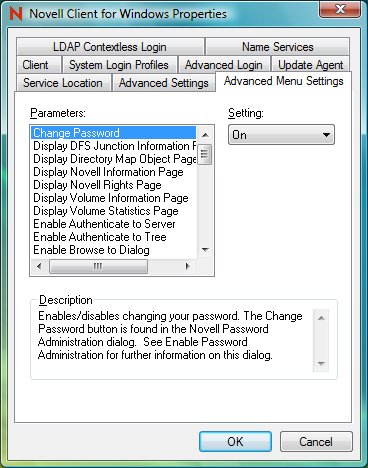

Figure 4-7 Advanced Menu Settings Property Page

Select the parameter you want, then use the Setting drop-down menu to turn the parameter On or Off. A short description of each parameter is available in the Description field when you select the parameter.

The Advanced Menu Settings parameters include the following:

  • Change Password: Enables or disables the ability of users to change their passwords. The Change Password button is found in the Novell Password Administration dialog box. See Enable Password Administration for more information on this dialog box.

  • Display DFS Junction Information Page: Display or hide the DFS Junction Information tab. The DFS Junction Information tab is found by selecting Properties from the context menu of a DFS Junction on a Novell server.

  • Display Directory Map Object Page: Display or hide the Directory Map Object page. The Directory Map Object page is accessed by selecting Properties from the context menu of the selected Directory Map Object icon in the Network folder.

  • Display Novell Information Page: Display or hide the Novell Information tab. The Novell Information tab is found by selecting Properties from the context menu of a volume, directory, or file on a Novell server.

  • Display Novell Rights Page: Display or hide the Novell Rights tab. The Novell Rights tab is found by selecting Properties from the context menu of a volume, directory, or file on a Novell server.

  • Display Volume Information Page: Display or hide the Volume Information tab. The Volume Information tab is found by selecting Properties from the context menu of a volume.

  • Display Volume Statistics Page: Display or hide the Volume Statistics tab. The Volume Statistics tab is found by selecting Properties from the context menu of a volume.

  • Enable Authenticate to Server: Enables or disables authenticating to a server. The Authenticate menu item is displayed in the context menu of a server.

  • Enable Authenticate to Tree: Enables or disables authentication to a tree. The Authenticate menu item is displayed in the context menu of a tree.

  • Enable Browse To Dialog: Enables or disables the Browse To dialog box. This menu item is displayed in the context menu of the Red N icon.

  • Enable Challenge/Response Administration: Enables or disables the Challenge/Response Administration item in the User Administration menu. For more information, see Configuring Challenge/Response Settings.

  • Enable Change Context Dialog: Enables or disables the Change Context dialog box. This menu item is found in the context menu of the selected container in the Network folder.

  • Enable Group Membership Dialog: Enables or disables the Group Membership item in the User Administration menu. See Configuring Your User Account in the Novell Client for Windows User Guide for more information on this menu.

  • Enable Inherited Rights Dialog: Enables or disables the Inherited Rights dialog box. This dialog box can be reached from a menu item in the context menu of a volume or directory or under the Novell Utilities menu item in the Red N menu.

  • Enable Login Account Information: Enables or disables the Login Account Information item in the User Administration menu. See Configuring Your User Account in the Novell Client for Windows User Guide for more information on this menu.

  • Enable Login Dialog: Enables or disables the Login dialog box. This menu item is displayed in the context menu of the Red N icon and in the context menu of the Network folder.

  • Enable Login to Server: Enables or disables logging in to a server. The Login to Server menu item is displayed in the context menu of the selected server.

  • Enable Logout of Server: Enables or disables logging out of a server. The Logout menu item is displayed in the context menu of a server. Subsequently, the Detach button when a server is selected in Novell Connections is also enabled or disabled according to this parameter.

  • Enable Logout of Tree: Enables or disables logging out of a tree. The Logout menu item is displayed in the context menu of a tree. Subsequently, the Detach button when a tree is selected in Novell Connections is also enabled or disabled according to this parameter.

  • Enable Map Dialog: Enables or disables the Network Drive Mapping dialog box.

  • Enable Mapped Drive Disconnect Dialog: Enables or disables the Disconnect dialog box.

  • Enable Modify Container Script: Enables or disables the Modify Container Script menu item. This item is displayed in the context menu of the selected container.

  • Enable NDS Mailing Information: Enables or disables the Mailing Information item in the User Administration menu. See Configuring Your User Account in the Novell Client for Windows User Guide for more information on this menu.

  • Enable NDS Personal Information: Enables or disables the Personal Information item in the User Administration menu. See Configuring Your User Account in the Novell Client for Windows User Guide for more information on this menu.

  • Enable NDS Work Information: Enables or disables the Work Information item in the User Administration menu. See Configuring Your User Account in the Novell Client for Windows User Guide for more information on this menu.

  • Enable Novell Client Help: Enable or disables the Novell Client help. This menu item is displayed in the context menu of the Red N icon.

  • Enable Novell Client Properties: Enables or disables viewing the Novell Client property pages. This menu item is displayed in the context menu of the Red N icon.

  • Enable Novell Connections Dialog: Enables or disables the Novell Connections dialog box. This menu item is displayed in the context menu of the Red N icon and in the context menu of the Network folder.

  • Enable Novell Copy Dialog: Enables or disables the Novell File Copy dialog box. This menu item is displayed in the context menu of the selected directory or file.

  • Enable Novell Utilities: Enables or disables the Novell Utilities. This menu item is displayed in the context menu of the Red N icon.

  • Enable Object Properties Dialog: Enables or disables the Object Properties dialog box. This menu item is displayed in the Novell Utilities menu. See Using Novell Utilities in the Novell Client for Windows User Guide for more information on this menu.

  • Enable Password Administration: Enables or disables password administration.

  • Enable Purge Dialog: Enables or disables the Purge Files dialog box. This menu item is displayed in the context menu of the selected volume or directory on a server.

  • Enable Salvage Dialog: Enables or disables the Salvage dialog box. This menu item is displayed in the context menu of the selected volume or directory on a server.

  • Enable Send Message: Specifies whether the Send Message function is enabled. This function is accessed from the Context menu for the selected server in Network Neighborhood.

  • Enable Send Message to Server Dialog: Enable/disable the send message to server dialog. This menu item is displayed within the server context menu item Send Message. See the Enable Send Message Dialog setting for further information on this menu.

  • Enable Send Message to User Dialog: Enable/disable the send message to user dialog. This menu item is displayed within the server context menu item Send Message. See the Enable Send Message Dialog setting for further information on this menu.

  • Enable Systray Config Dialog: Enables or disables the Configure System Tray dialog box. This menu item (Configure System Tray Icon) is displayed on the Red N menu in the notification area of the taskbar.

  • Enable Trustee Rights Dialog: Enables or disables the Trustee Rights dialog box. This dialog box can be reached from a menu item in the context menu of a volume or directory or under the Novell Utilities submenu on the Red N icon.

  • Enable Update Novell Client: Enables or disables the Update Novell Client menu item. This menu item is displayed in the context menu of the Red N icon.

  • Filter User List: Enables or disables showing only users objects in the Send Message dialog box.

  • Show Current Connections: Shows or hides the current connections displayed in the Novell Resource Browser and in the Network folder.

  • Show Edit Login Script Item: Specifies whether the Edit Login Script item is available in the User Administration menu. See Configuring Your User Account in the Novell Client for Windows User Guide for more information on this menu.

  • Show Novell System Tray Icon: If this parameter is enabled, the Red N icon appears in the notification area of the taskbar, located in the bottom right portion of the Windows screen. Right-click the Red N icon to select from a list of Novell Client options.

  • Show User Administration Menu: Enables or disables the menu item for user administration. This menu item is displayed in the context menu of the selected server or tree in the Network folder.

4.2.8 LDAP Contextless Login Settings

Use the LDAP Contextless Login property page in the Novell Client for Windows Properties dialog box to let users log in to the network without specifying a tree name or context For more detailed information, see Section 8.7, Setting Up LDAP Contextless Login and LDAP Treeless Login.

Figure 4-8 LDAP Contextless Login Property Page

This page contains the following options:

  • Enable LDAP Treeless Login: To enable treeless login, select this check box. Treeless login makes it possible to log in to the network without specifying a tree.

  • Enable LDAP Contextless Login: To enable LDAP contextless login, select this check box. You must have LDAP Services for eDirectory installed on your corporate server hosting the corporate tree to take advantage of LDAP contextless login.

  • Enable LDAP Context Search Scope: Use this option to limit the search scope to a specific context or to a specific context and subtree.

  • Trees: Lists the eDirectory trees running LDAP Services that will be searched during login.

    To add a tree to the list, specify a tree name in the Trees field, then click Add. To delete one or more trees from the list, select the trees and click Delete. These trees are no longer searched during login. To set a tree’s context scope information, select a tree from the list, then click Properties. You can limit the scope of the search by selecting Search Context Only in the Tree Properties dialog box.

  • Servers: Lists the servers associated with the tree running LDAP Services.

    To add a server, enter a server name in the Servers box, then click Add. Servers are searched in the order they appear in this list. You can rearrange the search order by clicking Up or Down. To delete one or more LDAP servers, select the servers and then click Delete. To set the LDAP server timeout and data encryption settings, select the server from the list, then click Properties.

  • Settings: Opens the LDAP Contextless Login Parameters dialog box. Select the parameter you want, then use the Settings option to configure the parameter. For most parameters, this consists of simply turning it On or Off. Some parameters give you other configuration options. A short description of each parameter is available in the Description field when you select the parameter.

4.2.9 Name Services Settings

Use the Name Services property page in the Novell Client for Windows Properties dialog box to specify which name service protocols are used to attempt to resolve names.

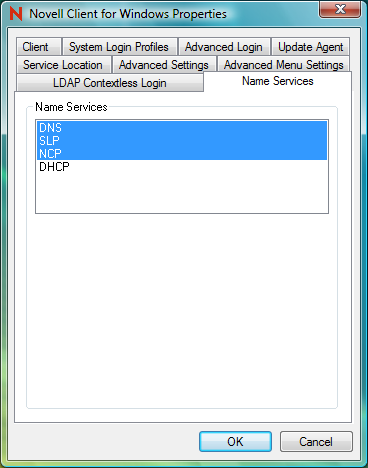

Figure 4-9 Name Services Property Page

All configured name service providers are queried asynchronously in order to resolve the name to an address. They are first queried with a cache flag that allows name service providers (NSP) who maintain a cache to attempt to resolve the name. If no NSP resolves the name then they are queried again without the cache flag, allowing all NSPs to attempt to resolve the name. NetWare Core Protocol™ uses information contained in the active NCP™ connections. Service Location Protocol queries SLP for eDirectory and Bindery names.
